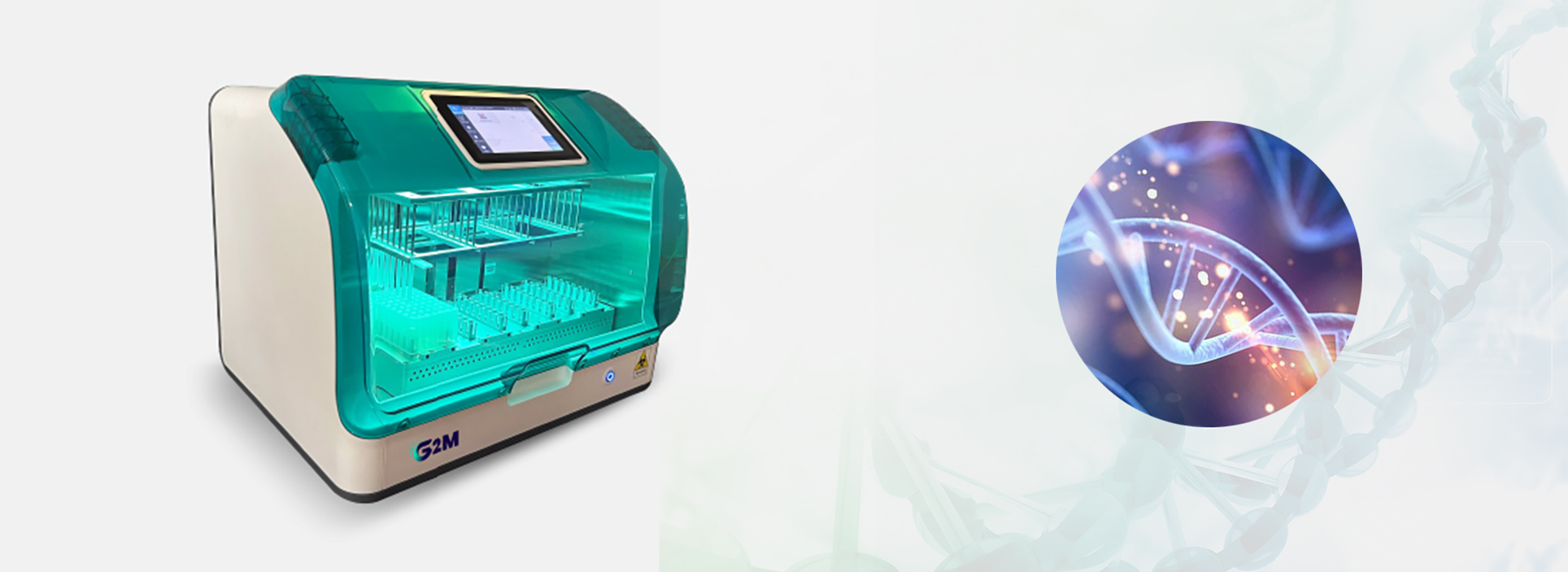

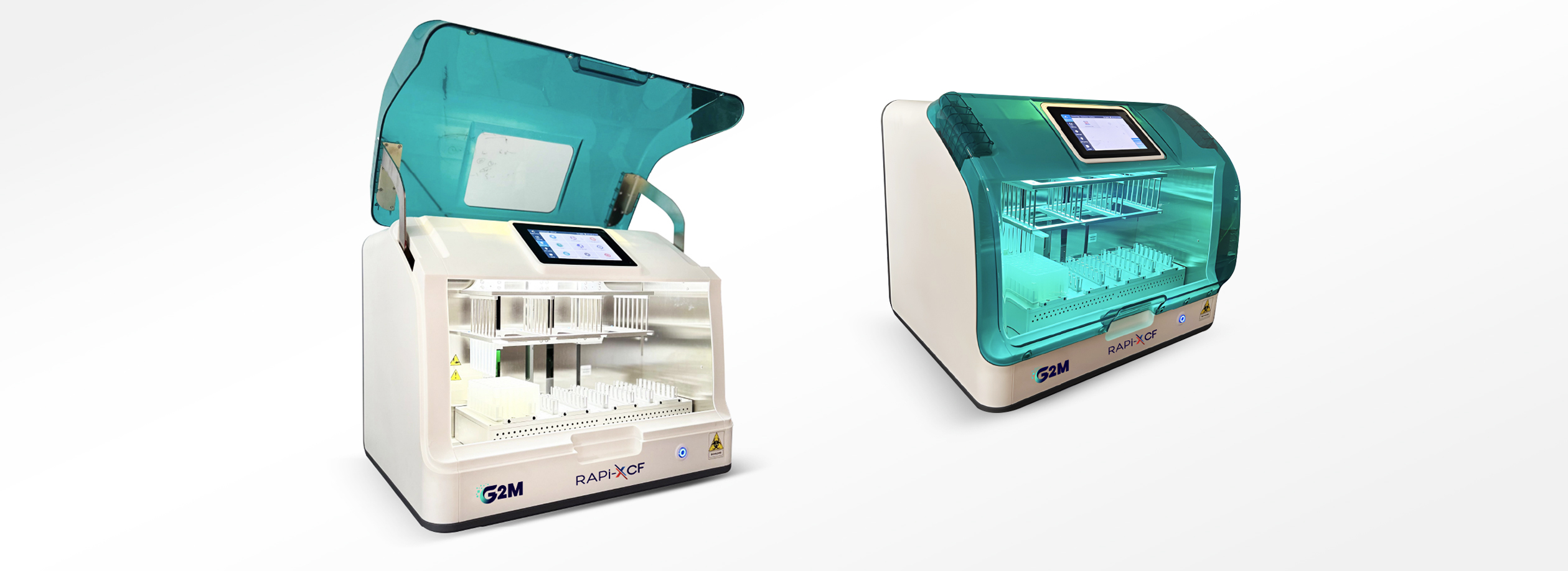

Rapi-X CF

Cell Free DNA Extraction System for NIPT
Rapi-X lb

Overview


By leveraging precision-controlled magnetic rods and disposable tips, the system automates the complete workflow—from nucleic acid binding to washing and elution—delivering consistent results with minimal hands-on time, With the ability to process upto 32 samples per run, it offers throughput flexibility while maintaining speed and reliability. Designed for use with 48-well pre-filled plates and capable of handling input volumes of up to 700 μL, the system ensures higher yield & superior recovery, even from low-concentration samples.

RAPi-X CF System offers unmatched versatility, handling a wide spectrum of sample types including serum & plasma. Designed for diverse laboratory environments, it is the perfect solution for clinical molecular diagnostics, Centers for Disease Control, research and academic institutions, and medical colleges. Whether for routine testing or advanced genetic studies, RAPi-X CF delivers consistent, high-quality results you can trust.

Features


  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.
  • Lorem Ipsum is simply dummy text of the printing and typesetting industry.

Efficiency in Isolating Circulating DNA from Plasma

PC Operation

Automated Cell Free DNA Extraction System

Automated Efficiency

Applications


High Throughput

The system offers full automation of the nucleic acid extraction workflow, with the capability to process up to 32 samples in a single run.

High Efficiency

Efficiency is 4-05 times greater than manual methods, ensuring faster turnaround and consistently reliable results.

Standard Operation

The intuitive user interface is designed for simplicity, ensuring smooth and effortless operation.

Flexible

Offers flexible throughput with the capacity to handle sample volumes of up to 700 µL, ensuring efficiency across diverse workloads.

Precise Temperature

Custom heater module ensures complete contact between the deep-well plates and heating element ensuring precise and uniform temperature control in every well, enabling high efficiency and optimal nucleic acid elution.

Contamination Control

Use of Disposable tips combined with a built-in UV sterilization system effectively prevents aerosol contamination between runs.

Specifications


Model No. RapiX-CF
Principle: Magnetic Bead Based
Sample Throughput: 8-32 samples
Process Volume: Upto 3ml
Sample Volume: 700 μl
Elution Volume: 90ul
Plate types: 48-well deep well plates
Plate Positions: 4
Magnetic Rods: 32 rods
Beads Recovery: >98%
CV Between Wells: Cv < 3%
Heating function: Heating are provided at 1st and 6th columns on each plate position.
Mix by vortex: 10 different mixing modes
Reagents: Closed platform for magnetic bead methods
User interface: 7 -inch color touch screen
Storage capacity: Up to 1000 programs
UV light: Yes
Exhaust Mode: Induced fan
Running time: < 60 minutes
Weight: 55 KG
Dimensions: 600mm X 500mm X 500mm
Power: 100-240VAC, 800VA
Humidity: ≤80% (Non-Condensing)
Temperature: 18-25 Degree C

Ordering Information


Cat No.

Commercial Name

G2M910002

RapiX-CF - Cell-free Nucleic Acid Extraction Automation System

G2M810003-96T

MagNXT Cell free DNA Extraction Kit

Compare RapiX-LB, RapiX-16 and RapiX-CF (in Extraction System)

Cat. No:
G2M910001
G2MI80002
G2M910002
G2MI80001
Principle:
Magnetic Bead Based
Magnetic Bead Based
Magnetic Bead Based
Magnetic Bead Based
Throughput:
Upto 4 Samples
Upto 16
8-32 samples
96 Samples
Process Volume:
Upto 8ml
Upto 1000ul
Upto 3ml
Upto 1000ul
