OnePCR

Fully Automated Nucleic Acid Detection System

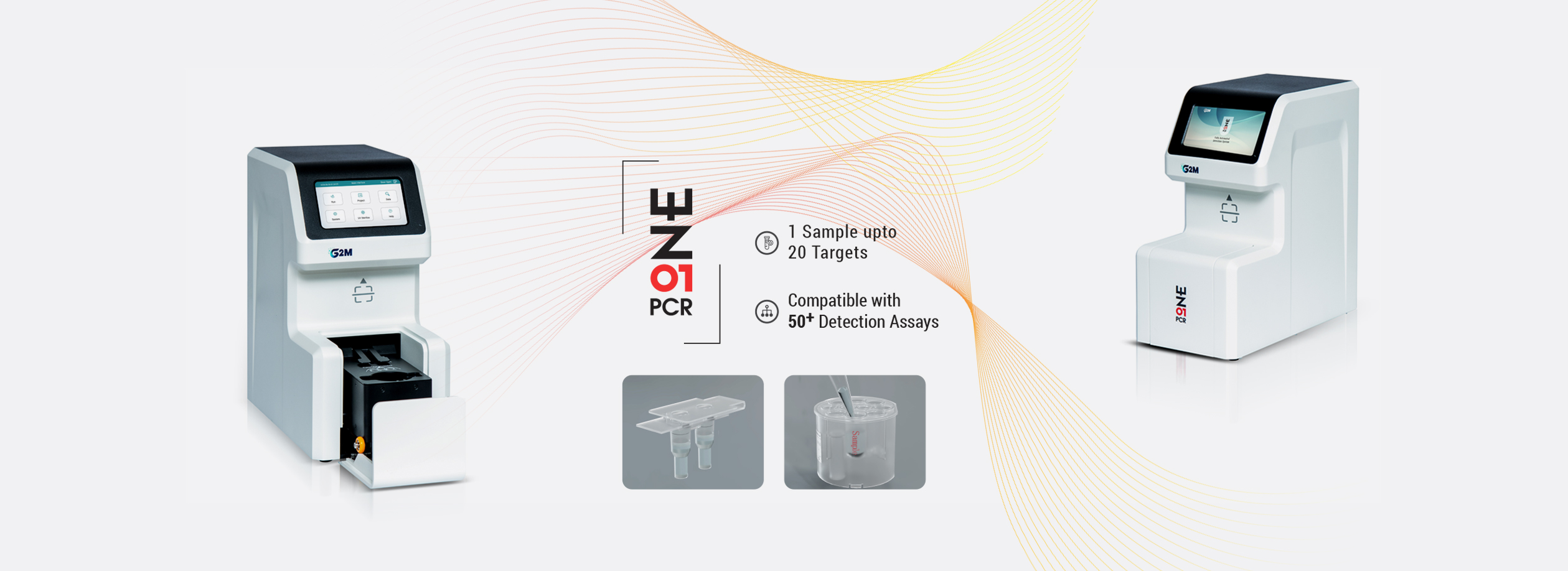

One-PCR Banner

Overview


OnePCR is a fully automated, all-in-one detection system designed to deliver a seamless sample-to-result workflow. By eliminating the need to transfer samples between multiple instruments, it significantly shortens overall run time while also reducing the risk of human error associated with manual handling.

Built on advanced cartridge technology, OnePCR seamlessly integrates nucleic acid extraction and real-time PCR amplification into one compact and easy-to-use solution. The system requires minimal hands-on interaction while delivering reliable and reproducible results, supporting efficient laboratory operations. With its intuitive design and optimized workflow, OnePCR enhances productivity and enables faster, more confident decision-making across a wide range of molecular testing applications.

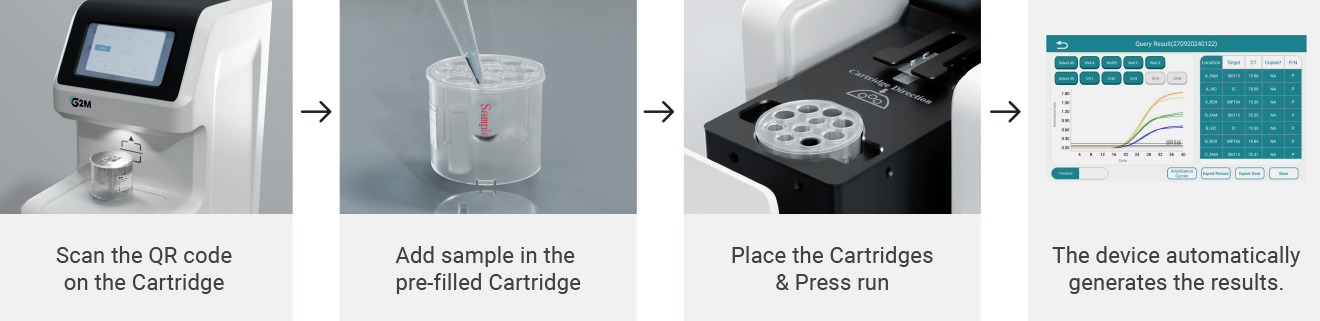

Process Workflow


Nucleic Acid Extraction

Video


Features


  • 1 sample, 20 target detection
  • Five channel fluorescence based detection system
  • Automated analysis & reporting
  • Ready-to-use cartridge based assays
  • Uncompromised detection accuracy
  • Standalone operation with precise and robotic liquid handling

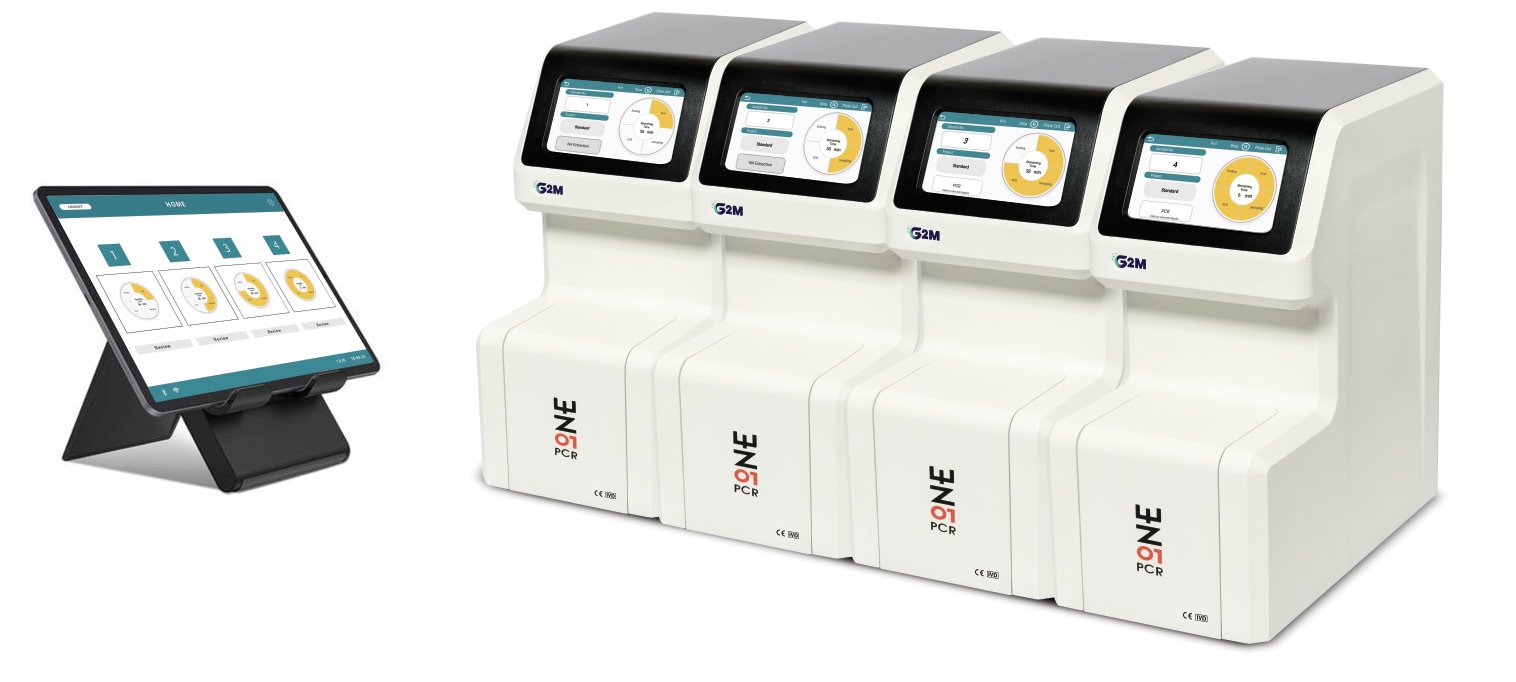

SCALABLE DESIGN
FOR INTEGRATING
MULTIPLE DEVICES
TOGETHER

Multiple Devices

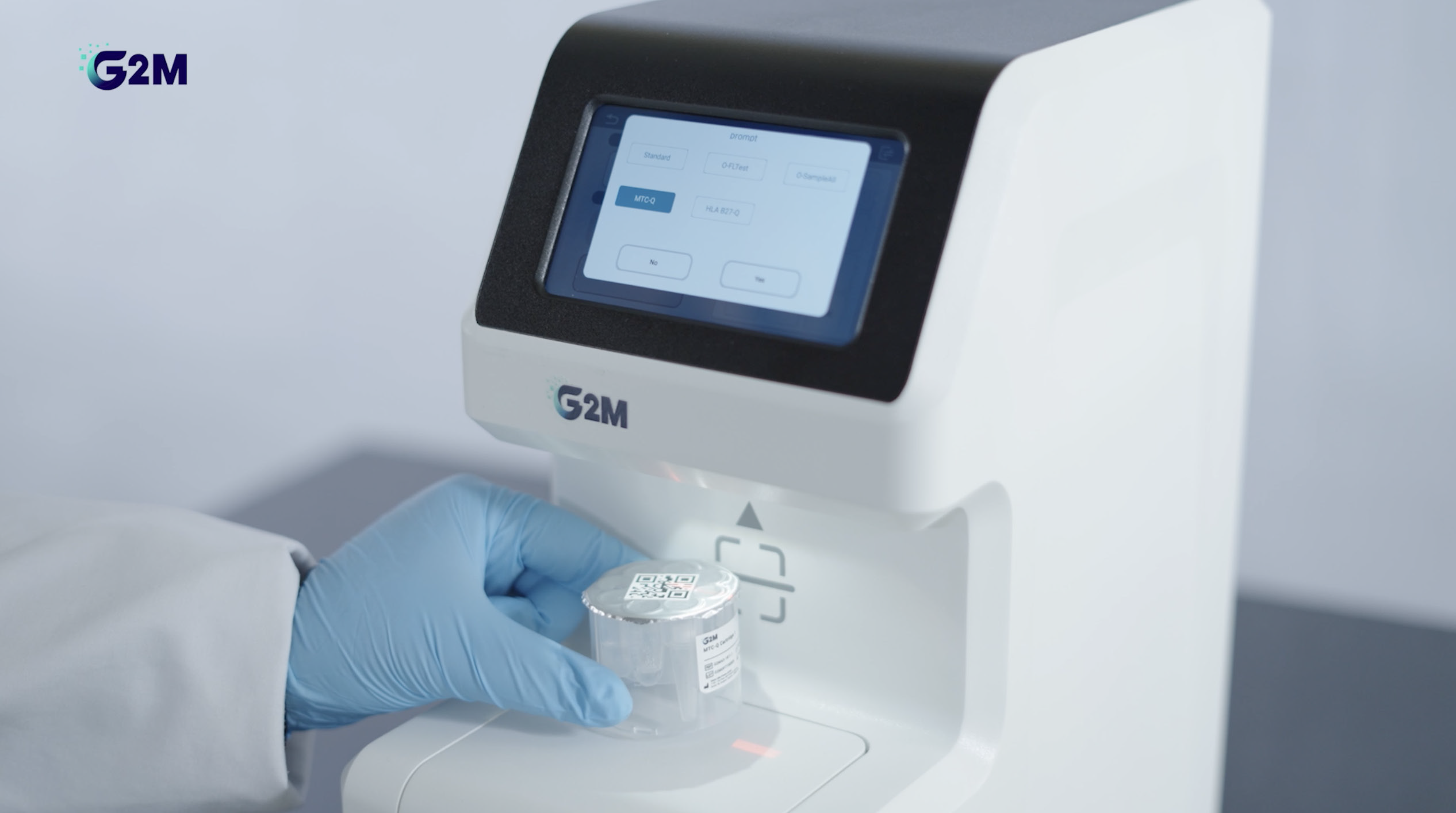

SCAN THE QR CODE ON
THE CARTRIDGE FOR
QUICK ACCESS TO THE
EXPERIMENT PROTOCOL

QR Code Access

Compatible Assays


Specifications


Model: OnePCR
Sample throughput: 1
Multi-targets Detection: Up to 20 targets
Extraction Principle: Magnetic Bead-Based method
Sample Volume: < 500uL (For Extraction)
Max heating rate: 7 °C/S
Max cooling rate: 7°C/S/td>
Temperature range: 9~99 °C
Temperature accuracy: ±0.20 °C
Temperature uniformity: ±0.20 °C
Fluorescence Channels: 5
Supported Dyes: Channel 1 : FAM /SYBR Green
Channel 2 :VIC/HEX/JOE/TET
Channel 3 :ROX/Texas Red
Channel 4 :Cy5/LIZ
Channel 5 :Cy5.5
Fluorescence channel crosstalk: After correction, crosstalk rate of the original fluorescence value between the channels is less than 1.00 %
Scanning method and time: Linear scanning, time 2s
Excitation Wavelength: 475-685nm
Emission Wavelength: 510-765nm
Data Analysis: The CT threshold is qualitative, relatively quantitative, and the data results are obtained as positive/ negative
along with the Ct values and detected genes.
Data Export: USB disk and Bluetooth
Bar Code: QR Code - Protocol Selection
128 Bit Barcode - Sample traceability
Control Method: In built touch screen
Supported languagesy: English version
Certification: CE-IVD, EMC/IEC compliant
Contamination control: Paraffin sealing, Negative pressure system, HEPA filtration, UV sterilize
Working Environment: 15-35 °C, ≤85%
Voltage/Current/Power: 15VDC / 6Amp / 90W
Dimension: 155mm*363mm*346mm
Weight: 6KG

Ordering Information


CAT #

DESCRIPTION

IG2M5001UF

Ultra Fast POC Rapid RT PCR System (One PCR)
