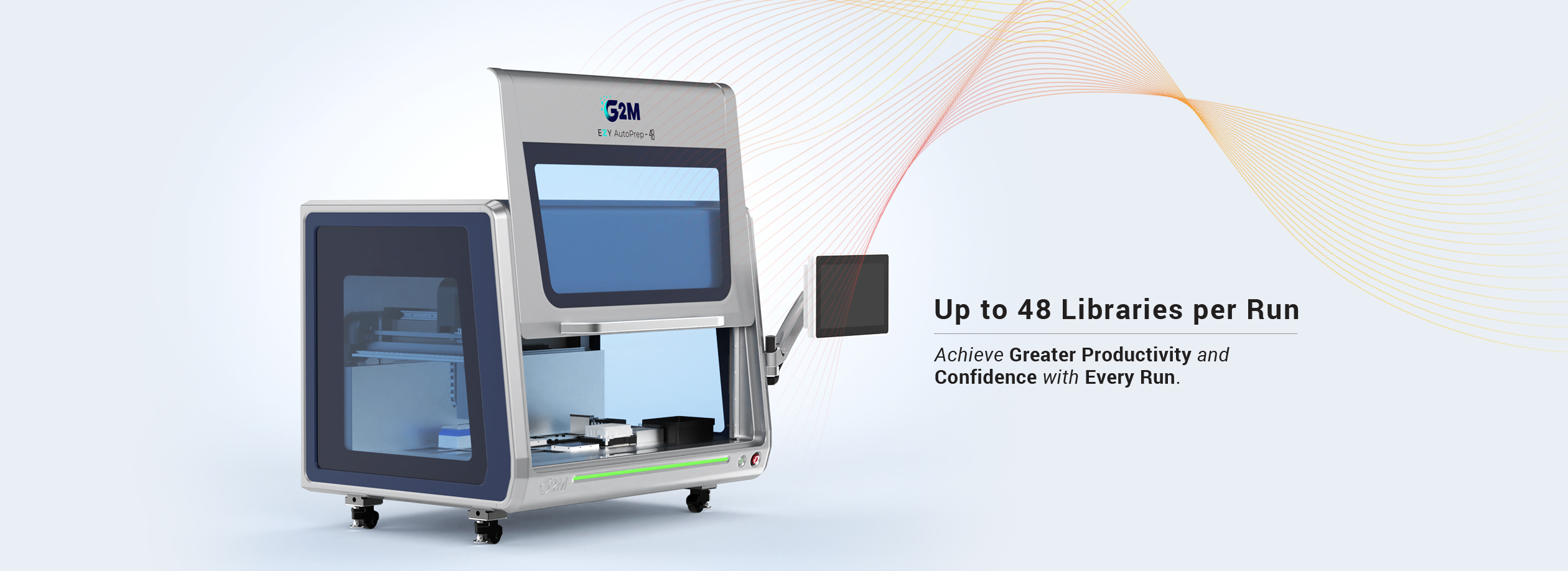

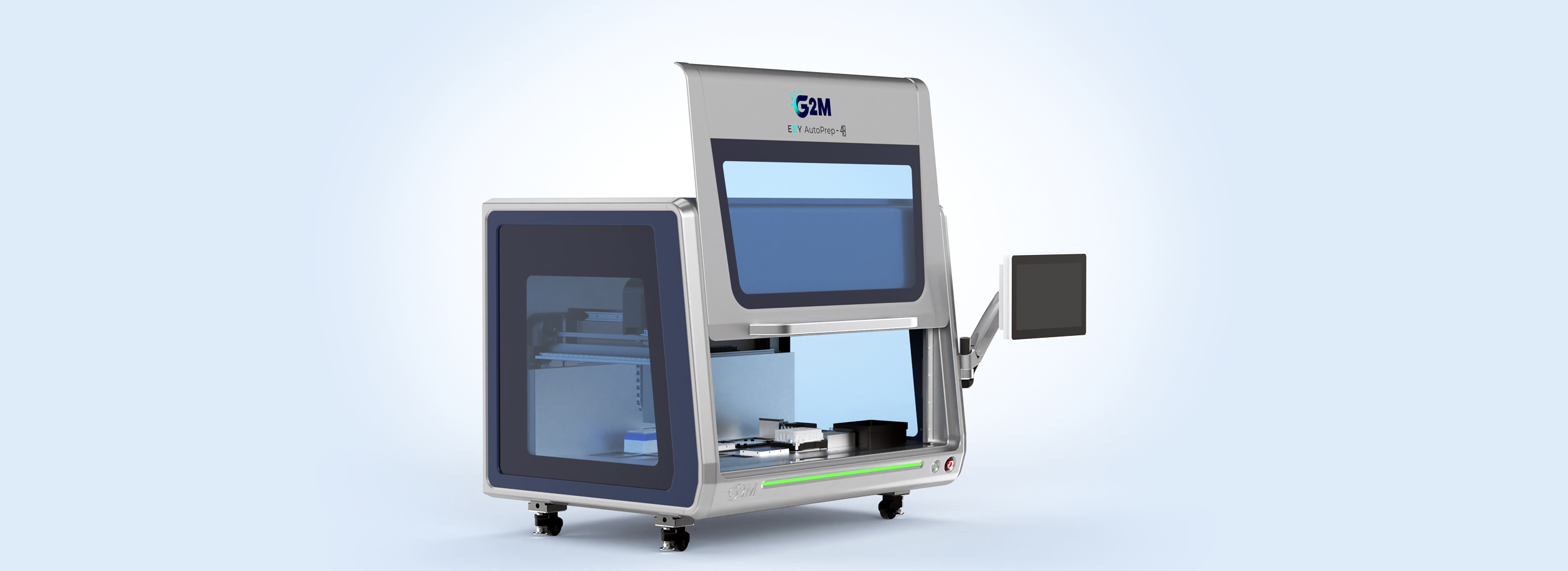

EZY AutoPrep - 48
Automated NGS Library Sample Preparation
EZY AutoPrep-48 is a high-throughput automated NGS Library Preparation Workstation capable of performing 48 library preps in one run, designed for laboratories that demand greater capacity without compromising precision, reliability, or ease of use. Built as an advanced extension of the EZY AutoPrep platform, it enables scalable library preparation with significantly reduced hands-on time for medium- to high-throughput sequencing workflows.
In addition to all the integrated capabilities of EZY AutoPrep-24, EZY AutoPrep-48 features a larger, more flexible deck layout, a high-performance 24-channel pipetting head, and an on-board fluorometer module for integrated quantification. The system seamlessly combines built-in thermal cycling, temperature-controlled deck positions, incubation and shaking, and gripper-based material handling to automate the complete NGS library preparation workflow—from end repair and adapter ligation to PCR amplification, cleanup, and quantification.
By unifying high-density liquid handling, advanced thermal control, integrated quantification, and an intuitive software interface, EZY AutoPrep-48 streamlines complex NGS workflows while maximizing consistency and reproducibility. The result is a powerful, walk-away automation solution that delivers higher throughput, improved data quality, and faster turnaround times for modern sequencing laboratories scaling their operations.
Automates end-to-end NGS library preparation workflows with high precision, reproducibility, and minimal hands-on time.
Supports automated magnetic bead–based extraction and purification of DNA, RNA, and cell-free nucleic acids.
Enables accurate and contamination-controlled preparation of PCR and qPCR reactions for consistent amplification results.
Automates reagent dispensing, incubation, and washing steps for ELISA and other plate-based immunoassays.
| Model No. | EZY AutoPrep-48 |
| Throughput: | 48 |
| Deck Locations: | 24 |
| Compatible Consumble: | SBS standard 96 well plate, deep well plate, reservoirs etc. |
| Tips: | 200µL and 50µL |
| Magnetic plate: | 96-well annular magnetic plate |
| XYZ Robot: | X-axis Repeated Positioning Precision: ±0.1 mm Y-axis Repeated Positioning Precision: ±0.1 mm Z-axis Repeated Positioning Precision: ±0.1 mm |

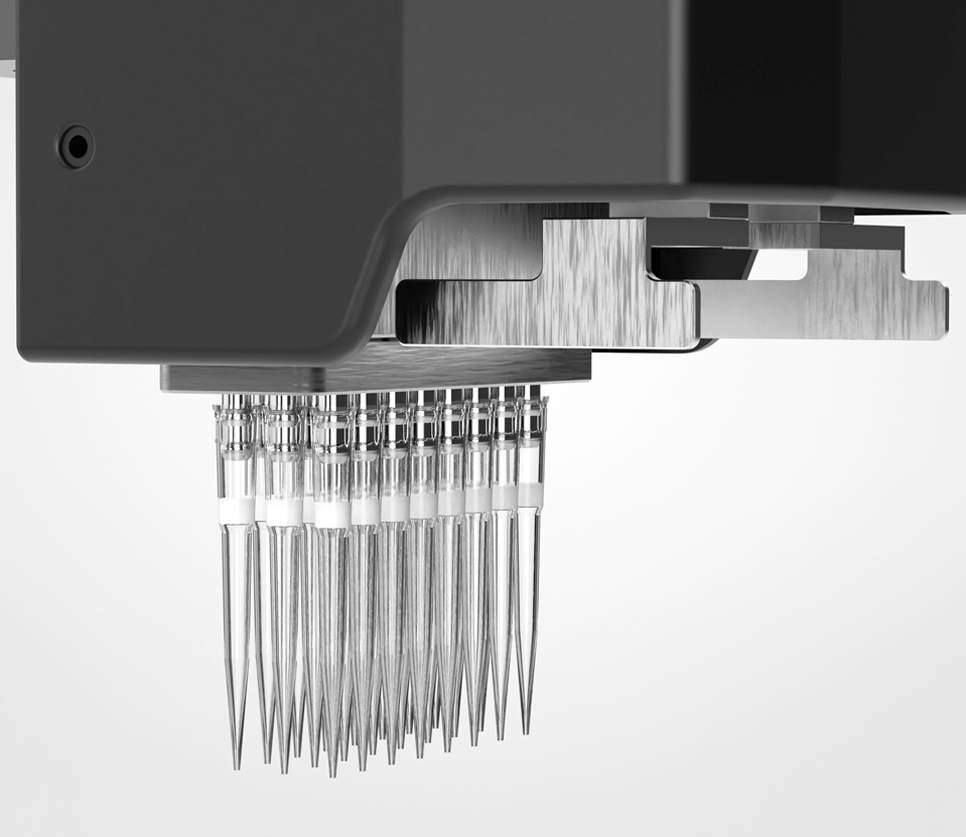

| Pipettor: | 24-channel fixed spacing pipettors Air displacement pipetting technology Pipetting range 2 - 200 µL Precision(CV) 2 µL: ≤5% , 100 µL: ≤1%, 200 µL: ≤1% |
| Gripper: | Motorized Gripper for automated consumable transfer and handling |
| Temperature control module: | Including 2 temperature control blocks. Temperature control range: 4~75°C Temperature control accuracy: ±1°C Temperature control uniformity: ±1°C |
| Fluorescence detection module: | Simultaneous detection of 8 samples, 2-20µL sample, 0.4 ng~100 ng |
| Heating & Oscillation Module: | (Room Temperature +5°C ) ~ 99°C Temperature Accuracy: ±2.0°C ; Temperature Uniformity: ≤ 1.5°C ; Oscillation Speed: 200rpm to 2000rpm |
| PCR Module: | Temperature Range: Lid: 30°C~ 105°C, Module: 4°C~ 99°C Uniformity: ≤ 1°C Accuracy: ± 0.5°C |
| Applications: | NGS Library Prepration, Nucleic Acid Extraction, PCR Setup, Elisa Setup and more |
| UV sterilization: | Equipped with UV sterilization lamp, high-efficiency purification filter device |
| Interface: | Integrated 14” Colour Touch Screen Windows PC |
| Instrument port: | USB port, CAN communication |
| Ambient condition: | Temperature requirement: 20±5°C, humidity: ≤80 % |
| Instrument Weight: | 200Kg |
| Dimension (W×D×H): | 1180mm W x 860mm D x 955mm H |
| Power input: | 100~240 V, 50~60 Hz, rated power 2000 W |
|
Cat No. |
Commercial Name |
|
G2MBR4-0712 |
EZY AutoPrep - 48 Automated NGS Library Preparation Workstation |
|
G2MBR4-0660 |
EZY AutoPrep - 24 Automated NGS Library Preparation Workstation |
