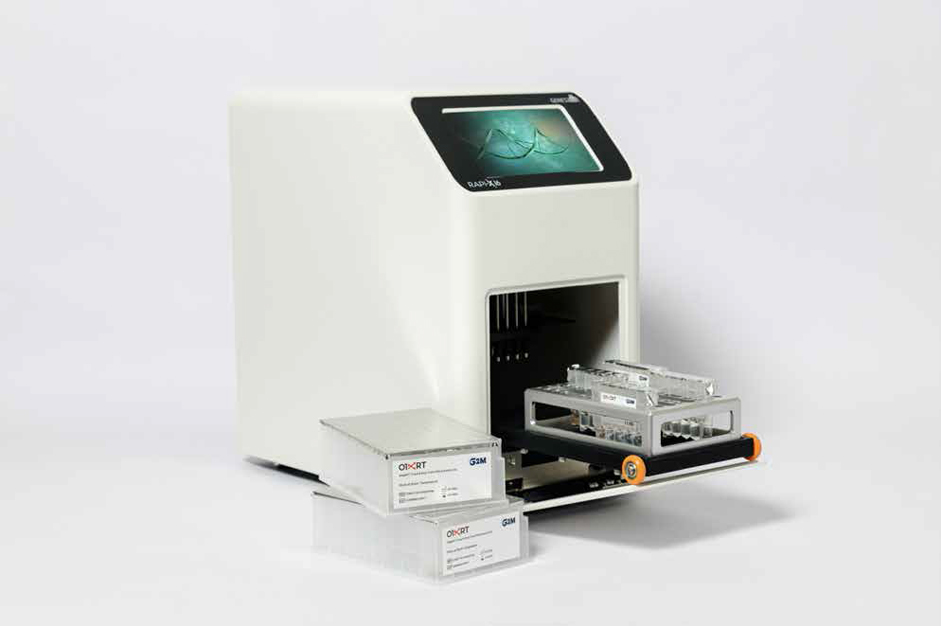

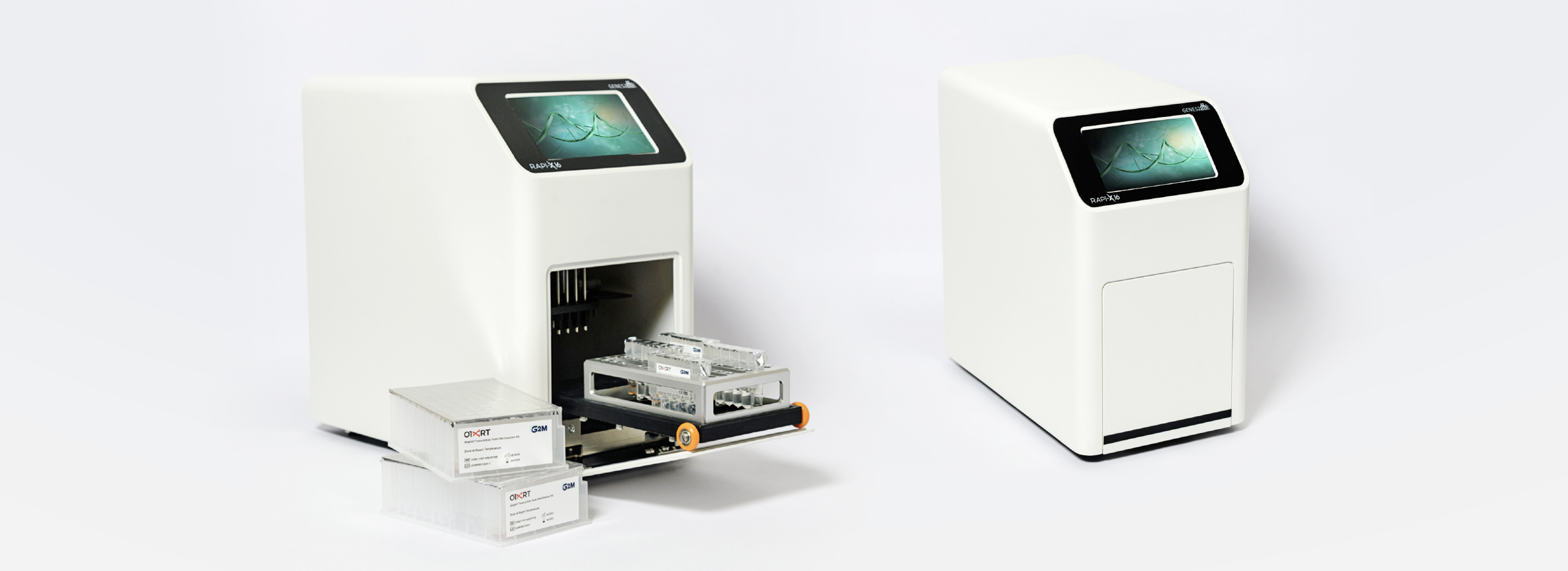

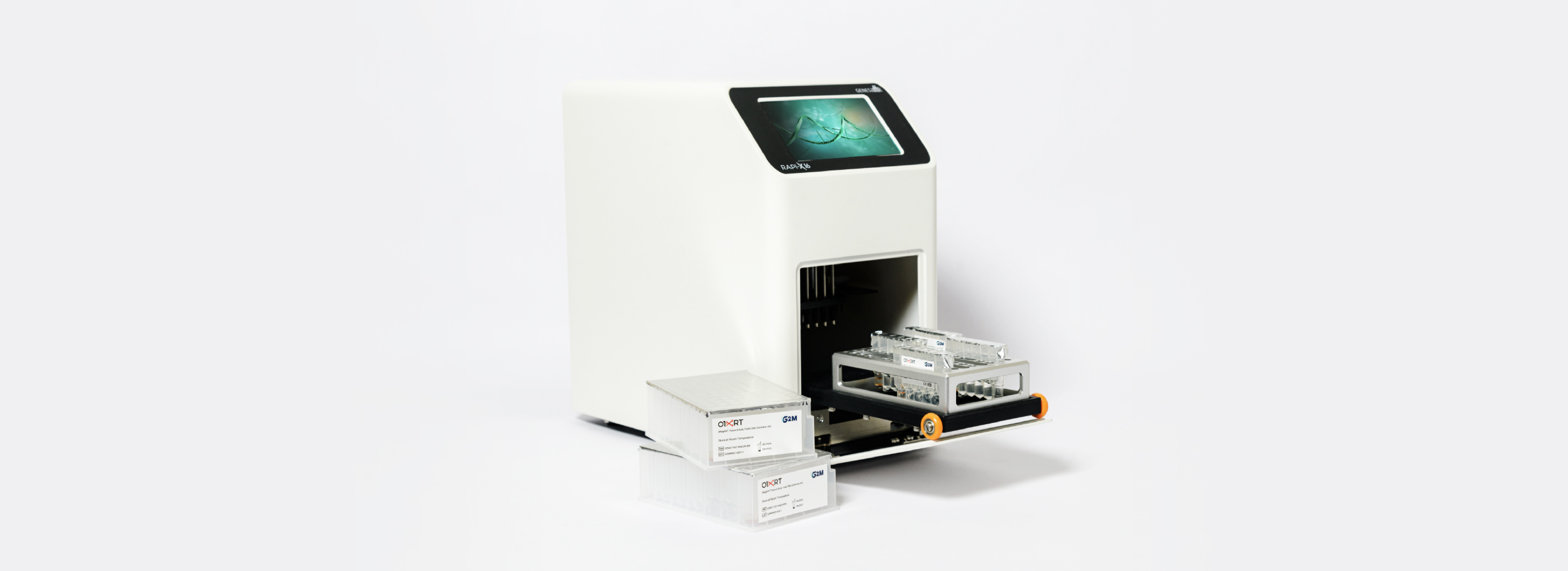

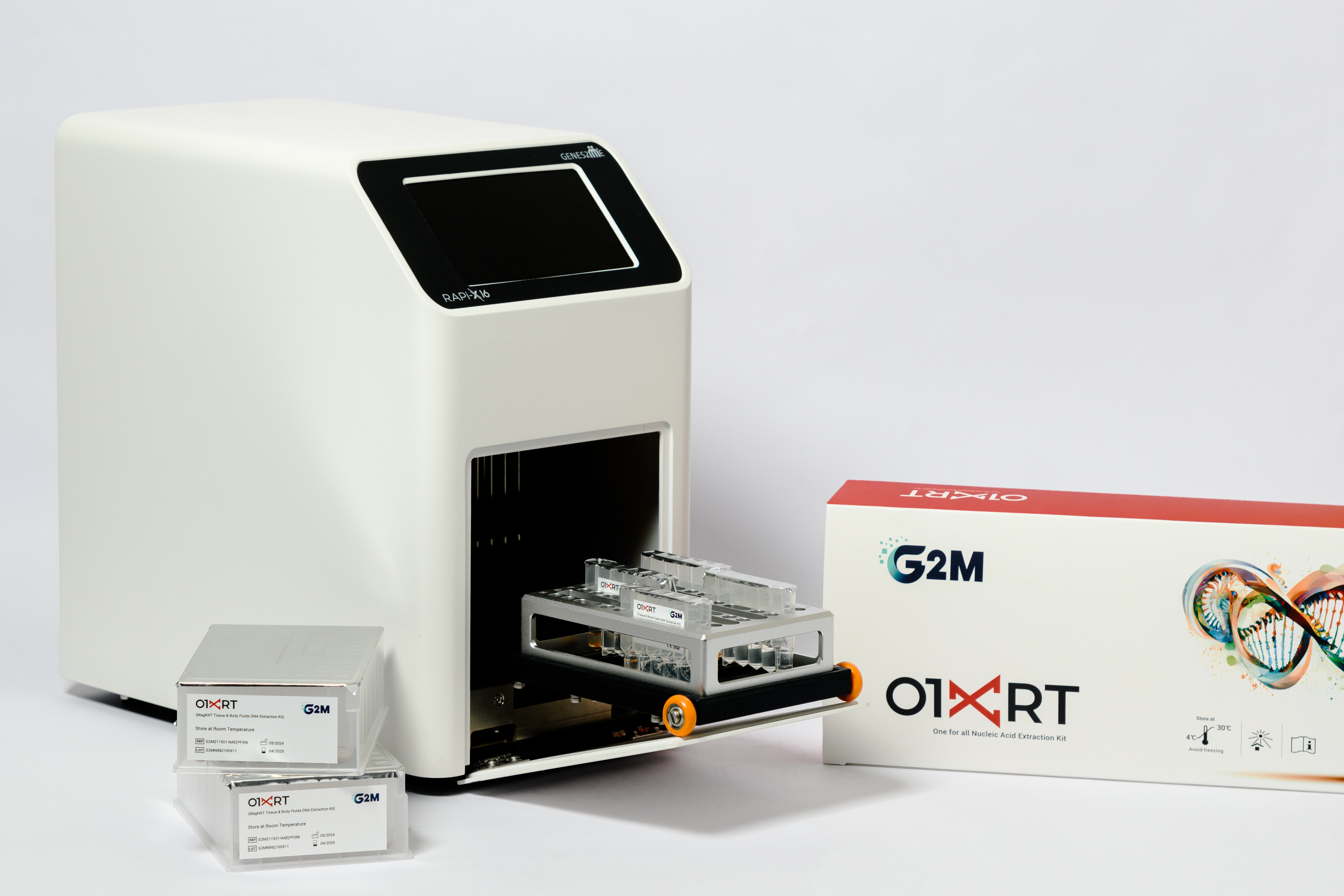

Rapi-X16
Nucleic Acid Extraction System
Rapi-X16 Automated Nucleic Acid Extraction System is based on magnetic bead based separation technology. 96-deep well plates and different reagents are utilized which are suitable for purification of various clinical sample including blood/tissue/viruses/cells. It maintains temperature uniformity with accurate controls. The instrument uses the special magnetic rods to absorb, transfer and release magnetic beads, so as to purify high quality nucleic acid.
| Model No. | Rapi-X16 |
| Processing Volume: | 30-1000µL |
| Sample throughput: | Upto 16 |
| Magnetic Bead Recovery: | >98% |
| Number of magnets: | 16 |
| Sample Processing time: | 15 mins |
| Purification Sensitivity (detection rate): | >95% |
| Extraction well to well differences: | 30µL - 100µL |
| Consumables: | 96 deep well plate with comb |
| Heating Temperature: | 25°C - 120°C |
| Oscillating mix: | Multi-level adjustable |
| Reagent Type: | Magnetic bead method |
| Operation Interface: | Embedded touch screen |
| Operation Program: | Android System |
| Data Storage: | Can store >500 groups of programs |
| Exhuast Method: | Fan |
| Extension module: | 1 USB |
| Flashlight: | YES |
| UV irradiation: | YES |
| Low noise processing: | Noise 65dB |
| Product Dimensions: | 250mm X 320mm X 275mm |
| Weight: | 6Kg |
| Power supply: | AC: 198-242V |
|
Cat No. |
Commercial Name |
|
G2MI80002 |
RapiX-16 - Automated Nucleic Acid Extraction System |
|
G2MI80001 |
RapiX-96 - Automated Nucleic Acid Extraction System |
