Overview

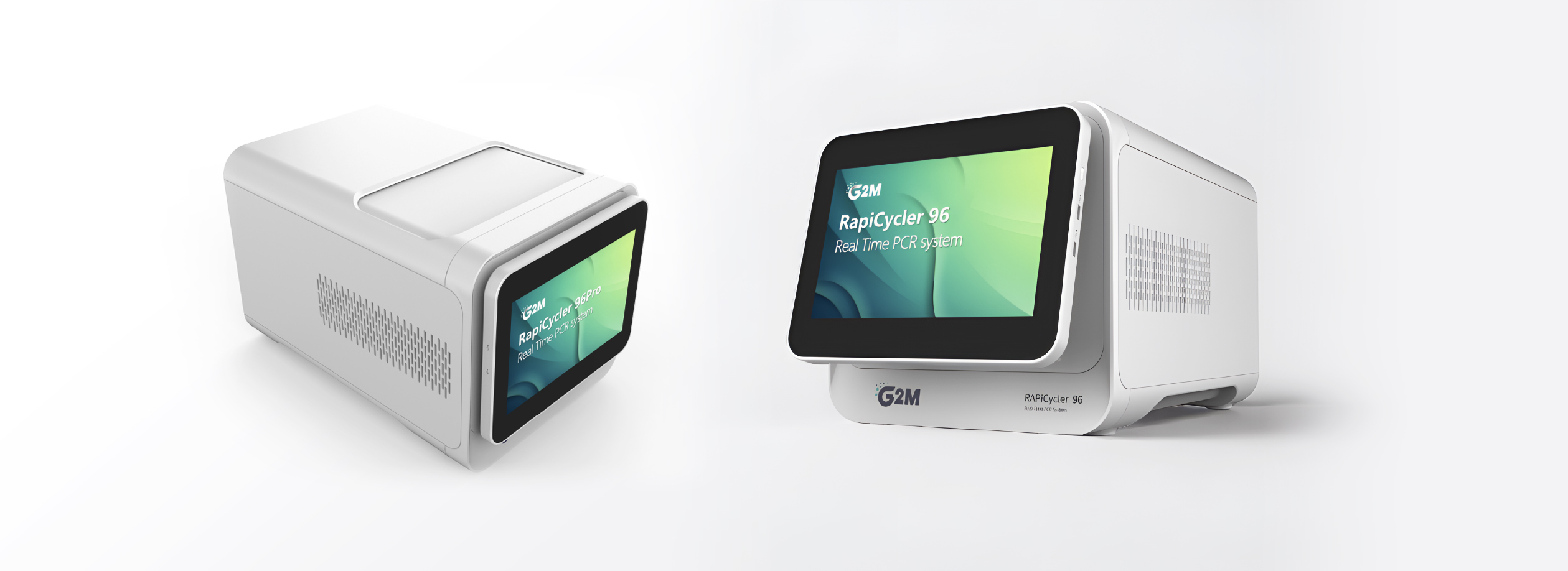

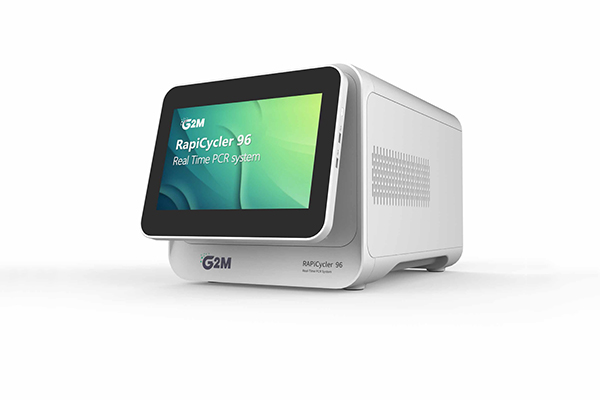

RapiCycler 96 is meticulously designed to meet the experimental needs of high-end laboratories with 4 or 6 fluorescence channels option to choose from. This advanced RT-PCR system can efficiently process up to 96 samples in a single run and supports wide array of applications, including qualitative and quantitative analysis, absolute and relative quantitation, melting curve analysis, standard curve and dissociation curve analysis,

multiplex PCR, SNP genotyping, HRM, allele identification, and a temperature gradient function. Utilizing cutting-edge semiconductor technology, RapiCycler96 rapidly executes the PCR amplification process. Its high-sensitivity photoelectric detection system ensures real-time detection of fluorescence signals, which are then analyzed and processed by robust analysis software, providing accurate and reliable results.

Features

Unique Side Scan Technology: Detects all fluorescent channels simultaneously, scanning 96 wells within just 5 seconds.
Ultra-Fast Ramp Rate: Up to 8°C/s, enabling faster run times without compromising accuracy.
ATemperature Gradient Function: 12-column gradient with 0.1°C–42°C adjustable range for optimized assay conditions.
Large 12.1” LCD Touchscreen: Real-time monitoring, intuitive control, and full offline operation.
Automated Reporting: Automated report generation with positive and negative results at the end of the run for easier and faster reporting.
Built-in Audit Trail System: Hierarchical access and full traceability for regulatory compliance.
Automatic Hot Lid: Compatible with automated workstations for high-throughput workflows.
Energy-Efficient LED Light Source: Long service life, low maintenance, and environmentally friendly.
CE-IVD Certified: Validated for clinical diagnostic use.

Applications

Efficient Fluorescence System

The 4 or 6 fluorescence channels compatible with most of the common fluorescent dyes and probes of regular detection reagents

Precise Temperature Control

Designed with maximum heating ramp rate of 8°C/s for quicker completion of assay.

User Friendy

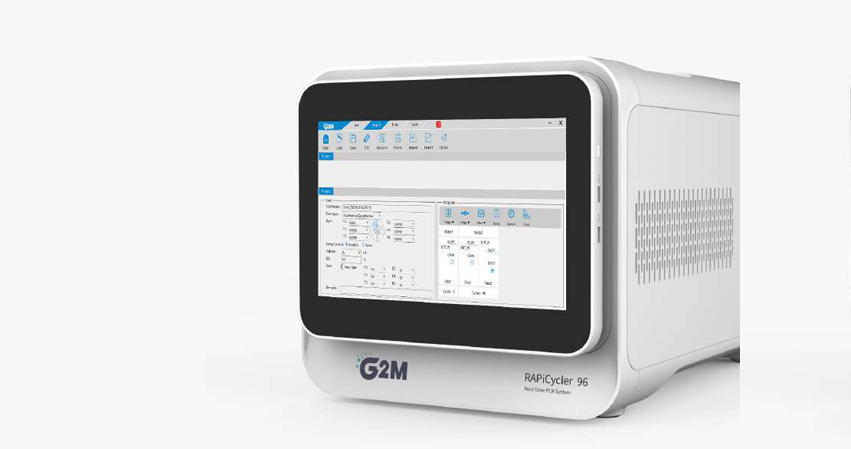

Integrated 12.1 inch Adjustable Colour Touch Screen & option to control via desktop software, one computer can control multiple instruments & can run multiple groups of experiments at any time.

Powerfull Software

Capable of various data analyses to meet the needs of most experiments, including qualitative analysis, SNP genotyping, absolute quantitative analysis, relative quantitative analysis, genotyping, endpoint fluorescence analysis, melting curve analysis, pathogen detection, plus/minus assays etc

Specifications

Model No.	G2MRAPI4001	G2MRAPI4002
Sample Capacity	96 well, 12 × 8 strip, 96 × 0.2 ml single tube
Consumables	0.2 ml tube, 0.2 ml 8-tube strips, 0.2 ml 96-well plate
Reaction Volume	10–100 µl
Temperature Range	4–100 °C (Resolution: 0.1 °C)
Ramp Rate	Up to 8.0 °C/s
Temperature Control Accuracy	±0.1 °C
Uniformity	±0.2 °C
Accuracy	±0.1 °C
Gradient	0.1–42 °C
Hot Lid Temperature	30–110 °C (Adjustable, default 105 °C)
Hot Lid Opening Mode	Automatic cover opening
Temperature Control	Block / Tube
Excitation Wavelength	400–710 nm
Emission Wavelength	500–810 nm
Detection Channels	4 Channels	6 Channels
Factory Calibrated Dyes	F1: FAM / SYBR Green / EVA Green F2: HEX / VIC / JOE / TET / YELLOW / NED F3: ROX / Texas Red F4: Cy5 / Quasar 670	F1: FAM / SYBR Green / EVA Green F2: HEX / VIC / JOE / TET / YELLOW / NIC F3: ROX / Texas Red F4: Cy5 / Quasar 670 F5: Cy5.5 / Quasar 705 F6: CY3 / NED / TAMRA
Excitation Source	Long-life LED
Detection Method	High-sensitivity photoelectric detector
Dynamic Range	1–10¹⁰ copies
Sensitivity	1 copy
Feature Functions	Qualitative/absolute quantification, relative quantitative, genotyping, HRM, melting curve, multiplex PCR, standard curve, relative standard curve, comparative Ct, allele identification/SNP genotyping, temperature gradient function, dissociation curve analysis, pathogen detection, plus/minus assays etc.
Special Temperature Functions	Supports thermal gradient PCR, Long PCR, Touch Down PCR
Control Mode	12.1 inch adjustable colour touch screen control or PC control
Data Export Formats	Excel, CSV, TXT, PDF
Reporting	Automated report generation at the end of the run, ready for printing
Communication Ports	USB 2.0, RS232
PC Operating System	Windows 7, Windows 10
Dimensions (L × W × H)	520 × 350 × 330 mm
Net Weight	30 kg
Power Supply & Consumption	AC 100–240 V, 50–60 Hz; 1500 W
Powerful software	Pre-calibrated with optimized algorithms to calculate crosstalk coefficients, ensuring minimal interference from overlapping fluorescence dyes accurate detection
Data Collection	Synchronous multi-channel detection with side-scan technology captures fluorescence data for 96 samples in 5 seconds. All channels are collected by default, with post-run reconfiguration and reanalysis available

Automated result interpretation & analysis report

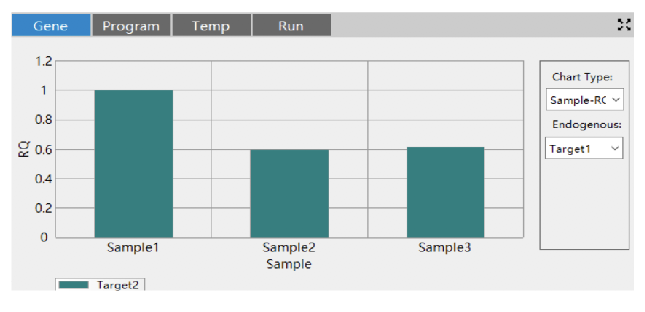

Bar Chart – Relative Quantification Analysis

Relative gene expression analysis across multiple samples using ΔΔCt method.

Standard Curve

Standard curve demonstrating high amplification efficiency and linear quantification.

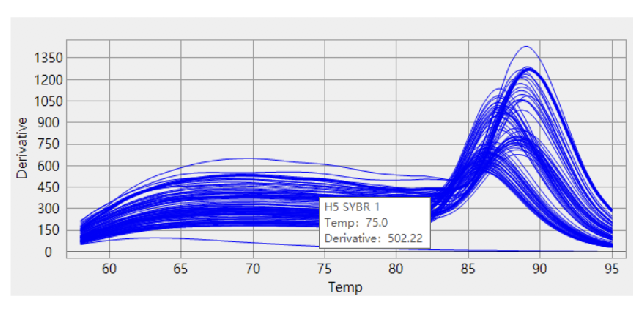

Melting Curve

Melting curve confirming specificity of PCR products through peak analysis.

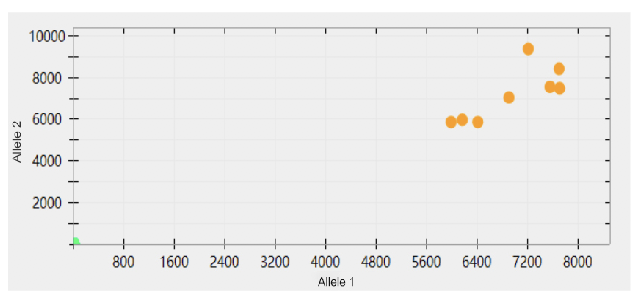

Allelic Discrimination Plot

Allelic discrimination plot for SNP genotyping and sample classification.

Ordering Information

CAT #	DESCRIPTION
G2MRAPI4001	RapiCycler 96 Real Time PCR System (4 channel)
G2MRAPI4002	RapiCycler 96 Real Time PCR System (6 channel)
