MagNXT DBS DNA Extraction Kit

MagNXT Direct Blood Spot DNA kit

The MagNXT DBS DNA Extraction kit provides a fast and simple magnetic bead particles solution for challenging samples like dried blood spots. It allows for the isolation of DNA from the blood of various mammalian species, including humans. The blood should be spotted and dried on suitable filter paper or specimen collection cards. The purified DNA is of high quality and is completely compatible with downstream applications including PCR, qPCR and more.

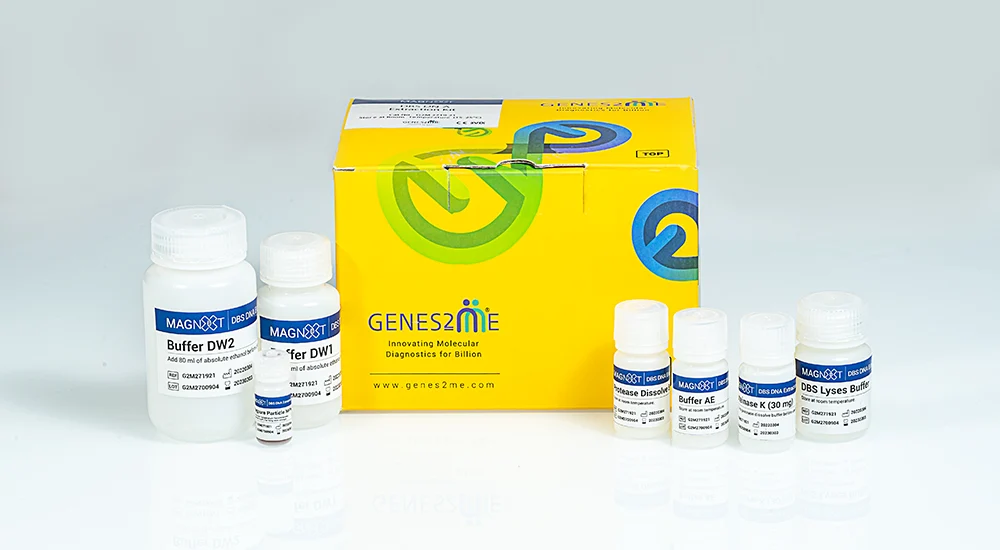

Kit components: MagPure Particles | DBS Lysis Buffer | Buffer DW1 | Buffer DW2 | Proteinase K | Proteinase Dissolving Buffer | Buffer AE

Blood DNA Extraction

Overview

The MagNXT DBS DNA Extraction Kit is a magnetic bead–based system designed for the efficient and reproducible isolation of genomic DNA from Dried blood spot (DBS) samples. The kit utilizes optimized lysis chemistry to release DNA from dried blood matrices, followed by selective binding of DNA to magnetic beads for rapid purification. Proteins, heme, and other PCR inhibitors are effectively removed through wash steps, resulting in high-purity DNA. The purified DNA is eluted in a low-salt buffer and is immediately compatible with downstream molecular applications. The protocol eliminates the need for hazardous organic solvents, centrifugation, and alcohol precipitation, ensuring a safe, fast, and user-friendly workflow with consistent performance.

Product Features

Blood DNA Extraction Kits
  • Recommended Input Amount: 3 x 3 mm diameter punches
  • Binding Mechanism: Super paramagnetic Beads
  • Elution Volume: 50 - 100 μl
  • Purity: A260/280 - 1.8±0.1, A260/230 - 2.0±0.1
  • Compatible Downstream Applications: Microarray analysis, STR analysis, restriction enzyme digestion & Southern blotting
  • Expected Yield: >800ng or 0.8 µg

Applications

PCR and qPCR

  • Reliable amplification and quantification of genomic DNA from dried blood samples.

Next-Generation Sequencing (NGS)

  • High-quality DNA suitable for library preparation and sequencing analysis.

Genotyping and Genetic Screening

  • Supports SNP analysis, mutation detection, and inherited disease studies.

Southern Blotting

  • Suitable for DNA Digestion, transfer, and hybridization-based detection workflows

Molecular Research and Diagnostics

  • Suitable for academic research, applied genomics, and clinical laboratory investigations.

Panel Specifications

Format: Paramagnetic Beads
Technology: Magnetic Bead Base
Sample Type: Dried Blood Spot Samples
Yield: Up to 10 µg
Target: Genomic DNA
A260/280: 1.6–1.9
Available Pack Sizes: 50 T, 250 T
Throughput Compatibility: Manual

Workflow / How It Works

Extraction workflow

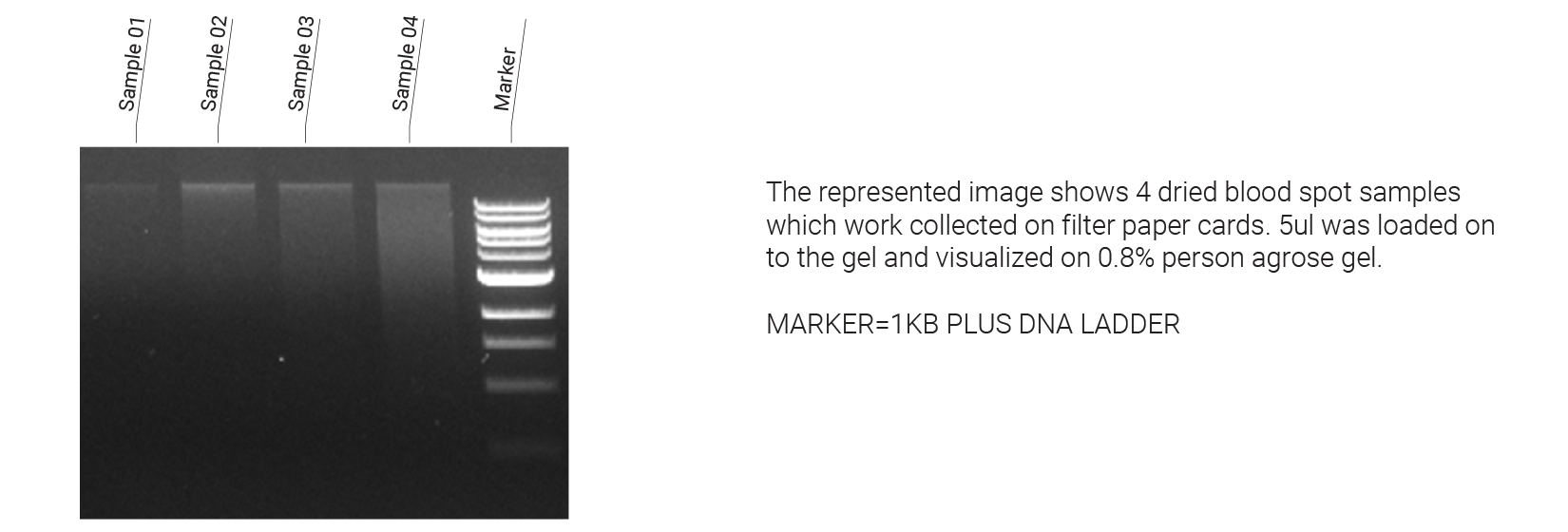

Data Analysis and Reporting

TB-Q Real Time PCR Kit

Ordering Information

Commercial Name Cat No. Pack Size
MagNXT DBS DNA Extraction Kit G2MBR4-0633 50 T
MagNXT DBS DNA Extraction Kit G2MBR4-0634 250 T

Product Enquiry Form

Resources to get started

Product Brochure
IFU (Instructions for Use)
Data File
