Overview

RapiQ-CF Automatic Cell-Free DNA/RNA Extraction System, specifically designed for efficient isolation of circulating DNA and RNA from biological samples. Utilizing precision-controlled magnetic rods and disposable tips, the system automates the entire workflow—including nucleic acid adsorption, washing, and elution—with high consistency and minimal hands-on time. Capable of handling 8 to 32 samples per run, offers flexibility for varying throughput requirements. The system is designed specifically to accommodate 48-well Pre-filled plates capable of processing input volumes of up to 700 µL, enabling higher yield from low-concentration samples.

Key Features

Fully Automated High-Throughput Processing: End-to-end automation of the nucleic acid extraction workflow with the ability to process up to 32 samples simultaneously, delivering.
Rapid & Consistent Performance: Significantly reduced turnaround time with reliable, reproducible results, ideal for high-demand laboratory environments.
Intuitive & User-Friendly Interface: Simplified operation with an easy-to-use interface, enabling smooth workflow execution with minimal training.
Uniform & Precise Temperature Control:Optimized design ensures full contact between deep-well plates and heating modules, providing accurate and uniform temperature across all wells for efficient nucleic acid elution.
Advanced Contamination Control: Integration of disposable tips and built-in UV sterilization effectively minimizes aerosol contamination and ensures sample integrity across runs.

Applications

Non-Invasive Prenatal Testing (NIPT)

Optimized for efficient extraction of cell-free fetal DNA (cfDNA) from maternal plasma for prenatal screening applications.

Cell-Free DNA (cfDNA) Analysis

High-yield and high-purity extraction of cfDNA for applications in circulating DNA studies.

Molecular Diagnostics (Low Abundance Targets)

Suitable for workflows requiring extraction of low-concentration nucleic acids with high sensitivity.

Next-Generation Sequencing (NGS) Sample Preparation

Enables preparation of high-quality nucleic acids for NGS-based prenatal and oncology applications.

Specifications

RapiX-CF (Cell-free Nucleic Acid Extraction Automation System)	G2M910002
Principle:	Extraction by magnetic beads
Throughput:	8-32 samples
Process Volume:	Upto 3ml
Sample Volume:	≤700 μl
Elution Volume:	50ul-80ul
Plate types:	48-well deep well plates
Plate Positions:	4
Magnetic Rods:	32 rods
Beads Recovery:	>98%
CV Between Wells:	Cv < 3%
Heating function:	Heating are provided at 1st and 6th columns on each plate position.
Mix by vortex:	10 different mixing modes
Reagents:	Closed platform for magnetic bead methods
User interface:	7 -inch color touch screen
Storage capacity:	Up to 1000 programs
UV light:	Yes
Exhaust Mode:	Induced fan
Running time:	< 60 minutes
Weight:	55 KG
Dimensions:	600mm X 500mm X 500mm
Power:	100-240VAC, 800VA
Humidity:	≤80% (Non-Condensing)
Temperature:	18-25 Degree C

RapiX Extraction Systems – Comparison Matrix

RapiX-LB

RapiX-16

RapiX-CF

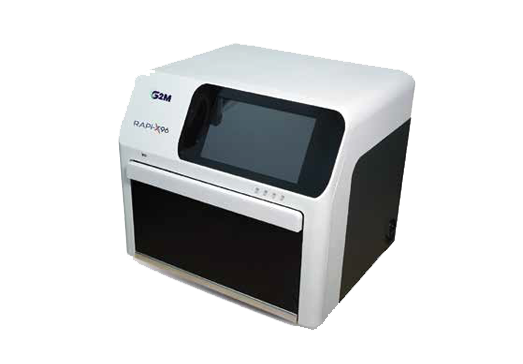

RapiX-96

Cat. No:

G2M910001

G2MI80002

G2M910002

G2MI80001

Principle:

Magnetic Bead Based

Throughput:

Upto 4 Samples

Upto 16

8-32 samples

96 Samples

Process Volume:

Upto 8ml

Upto 1000ul

Upto 3ml

Upto 1000ul

Ordering Information

Cat No.	Commercial Name
G2M910002	RapiX-CF - Cell-free Nucleic Acid Extraction Automation System
G2M810003-96T	MagNXT Cell free DNA Extraction Kit
