Nucleic Acid Extraction Kits


Robust & Compact DNA/RNA Extraction System

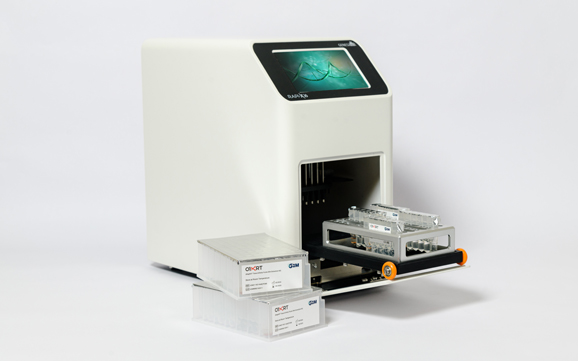

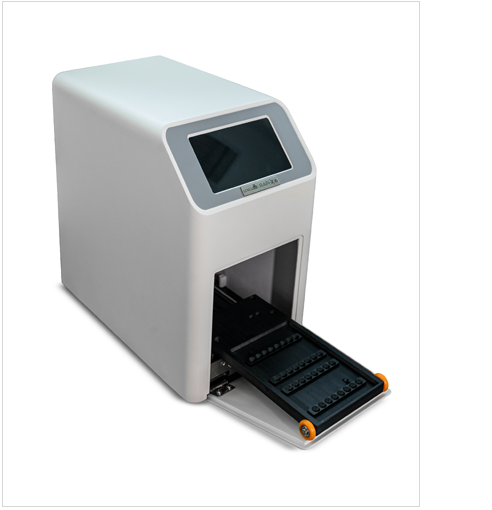

Rapi-X16 Automated Nucleic Acid Extraction System is based on magnetic bead based separation technology. 96-deep well plates and different reagents are utilized which are suitable for purification of various clinical sample including blood/tissue/viruses/cells. It maintains temperature uniformity with accurate controls. The instrument uses the special magnetic rods to absorb, transfer and release magnetic beads, so as to purify high quality nucleic acid.

RT-PCR Testing Kits
RT-PCR Testing Kits
Compatibility
Suitable for extraction and purification of various clinical samples
RT-PCR Testing Kits
Processing Time
Extraction time ∼15 minutes
RT-PCR Testing Kits
Weight & Size
Light weight & one-forth in size to available Nucleic acid extractors in the market
RT-PCR Testing Kits
Sensitivity
High Sensitivity with precise mechanical movement

Ideal for Point-of-Care Testing Purpose

Ready to use pre-filled Kits available

Open the sleeve
- Add sample
- press start

RT-PCR Testing Solutions

Unique Structure

The instrument has 1 plate position, 4 column positions are heated as standard, pre-heating system

Contamination Control

UV sterilization device which effectively eliminates aerosol contamination

Specifications

Processing Volume

30-1000µL

Sample throughput

Upto 16

Magnetic Bead Recovery

>98%

Number of magnets

16

Sample Processing time

15 mins

Purification Sensitivity (detection rate)

>95%

Extraction well to well differences

30µL - 100µL

Consumables

96 deep well plate with comb

Heating Temperature

25°C - 120°C

Oscillating mix

Multi-level adjustable

Reagent Type

Magnetic bead method

Operation Interface

Embedded touch screen

Operation Program

Android System

Data Storage

Can store >500 groups of programs

Exhuast Method

Fan

Extension module

1 USB

Flashlight

YES

UV irradiation

YES

Low noise processing

Noise 65dB

Product Dimensions

250mm X 320mm X 275mm

Weight

10Kg

Power supply

AC198-242V

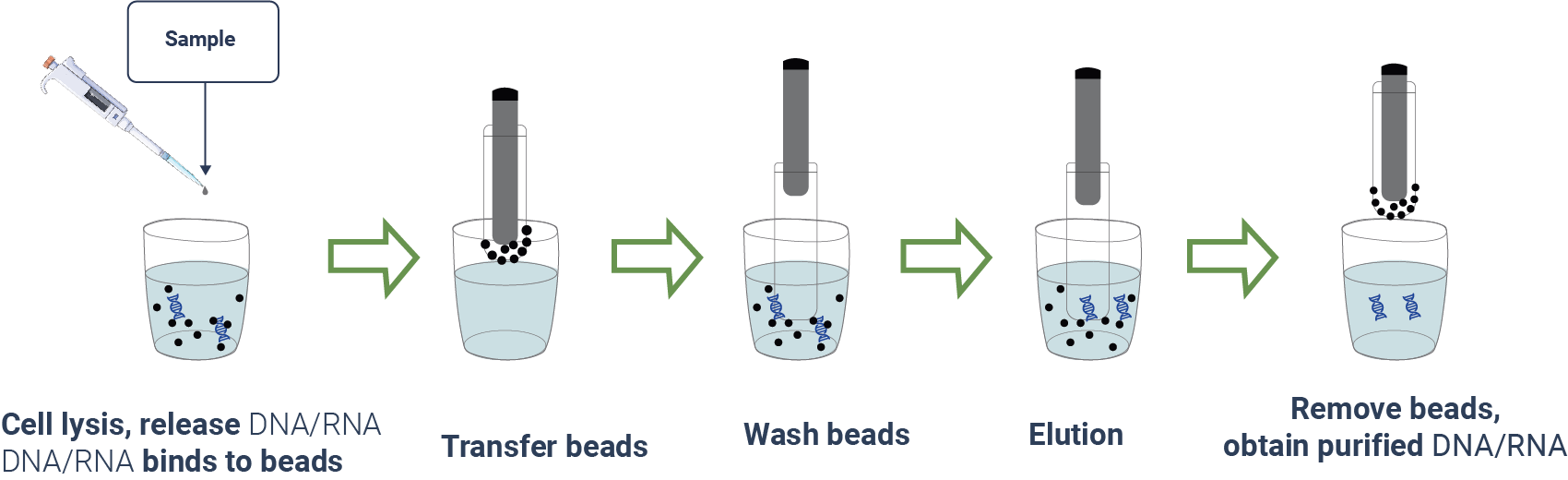

Workflow
