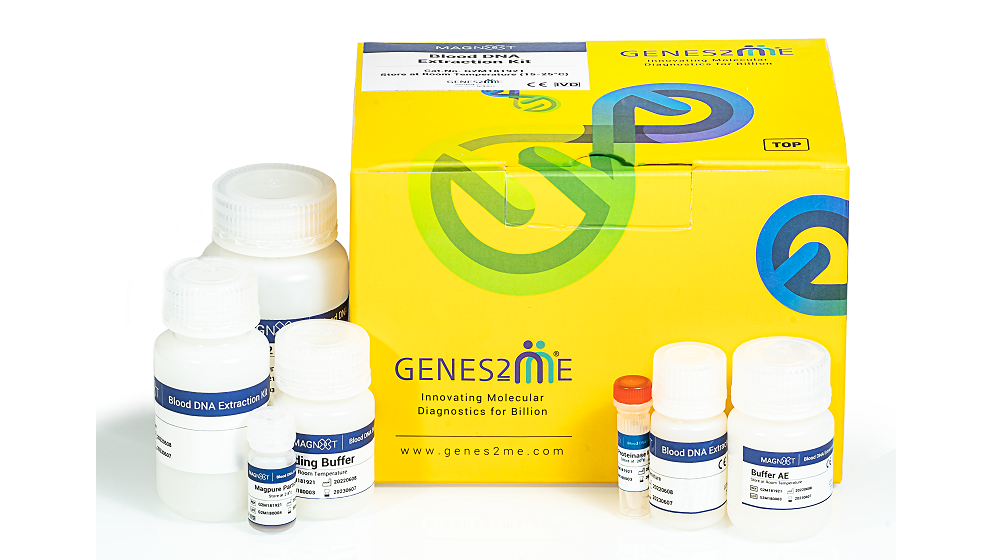

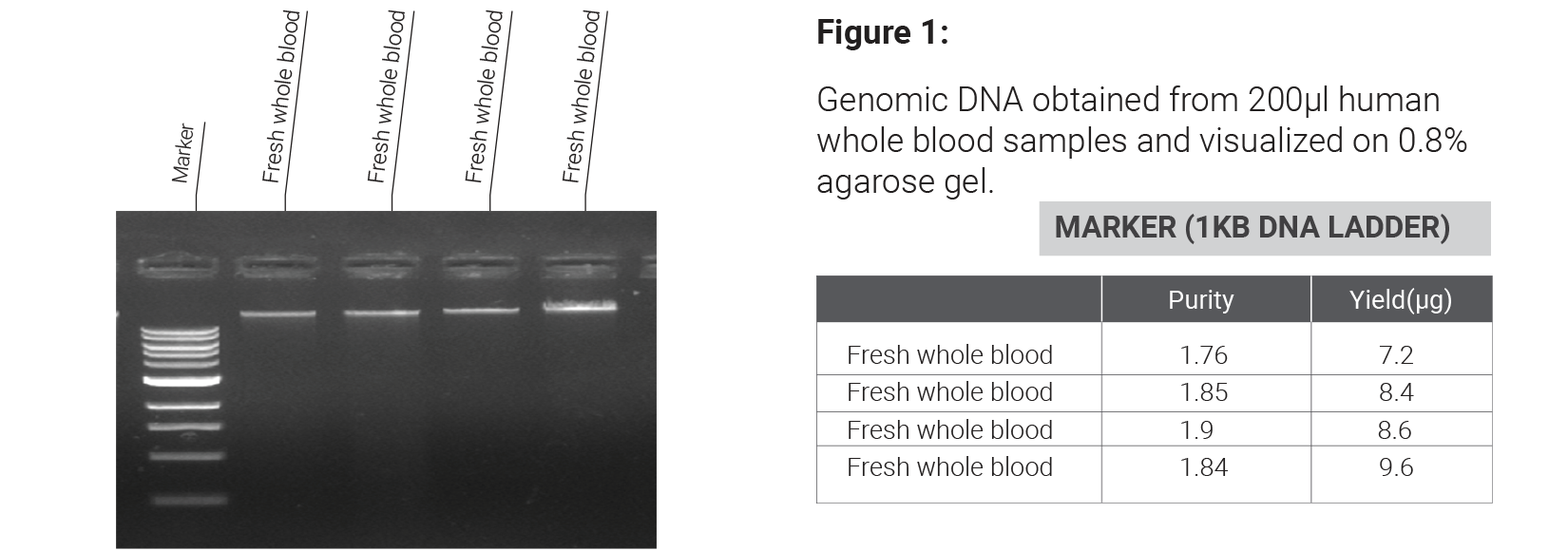

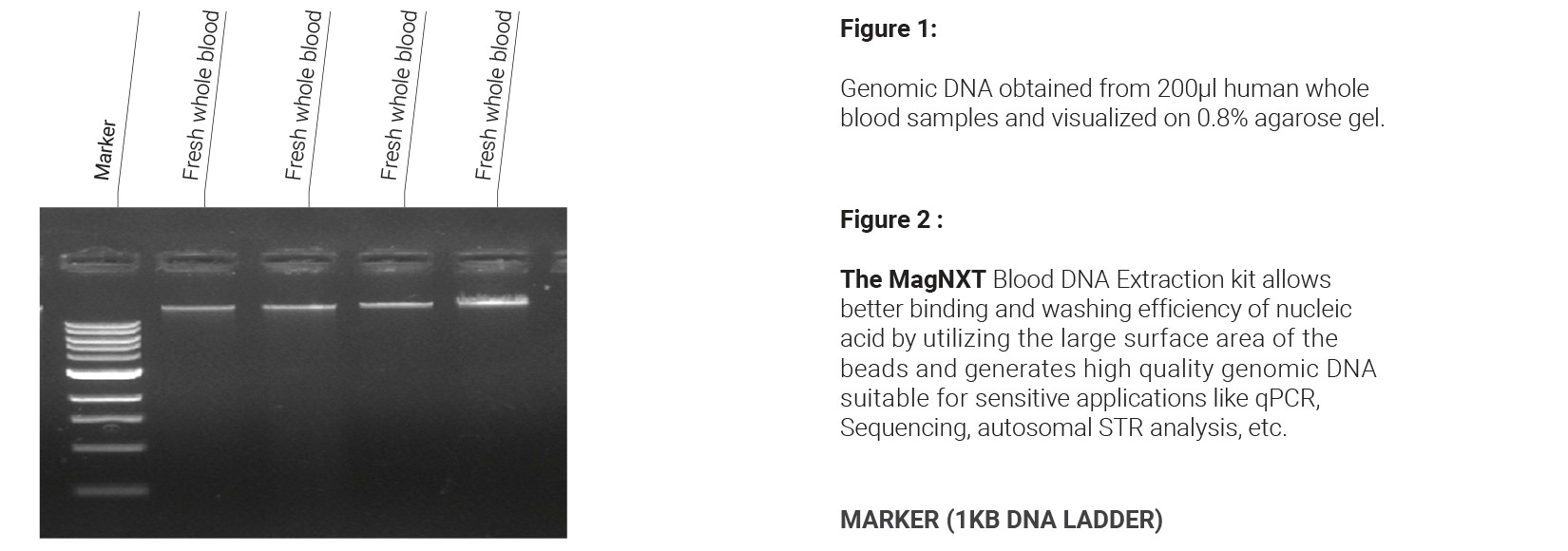

MagNXT Blood DNA Extraction kit is designed for the purification of genomic DNA from fresh whole blood or blood stabilized with anticoagulants. The kit provides unique buffer systems that efficiently lyse the red blood cells and simultaneously white blood cells are recovered by centrifugation.
Magnetic bead Particles | Buffer LB | Buffer BW1 | Buffer BW2 | Proteinase K | Protease Dissolve Buffer | Binding Buffer | Buffer AE
Binding Capacity : Super paramagnetic beads
Recommended input amount : ~ 200µl of whole blood
Elution Volume :≥ 30 µl
Purity : A260/280 - 1.8±0.1, A260/230 - 2.0±0.1
Expected Yield :>≥7-12 µg.
Restriction endonuclease digestion
qPCR
Sequencing
autosomal STR analysis
viral DNA detection
Format |
Pre-filled Plates |
Technology |
Magnetic bead |
Sample Type |
Whole Blood (200µl), Serum, plasma, Lymphocytes/Buffy coat |
Yield |
>≥7-12 µg |
Target |
Genomic DNA |
A260/280 |
1.6-1.9 |
Available in pack sizes |
96 / 192 / 480 Preps |
Throughput Compatibility |
Automation |
CAT # |
DESCRIPTION |
UNITS |
G2M182121-PF(KF) |
MagNXT Blood DNA Extraction Kit (Pre-filled for Thermo KingFisher) |
480 Tests |
G2M182121-PF(MG) |
MagNXT Blood DNA Extraction Kit (Pre-filled for MGI -SP960) |
480 Tests |
G2M182121-PF(R96) |
MagNXT Blood DNA Extraction Kit (Pre-filled for Genes2Me Rapi-X96) |
480 Tests |
G2M182121-PF(R16) |
MagNXT Blood DNA Extraction Kit (Pre-filled for Genes2Me Rapi-X16) |
192 Tests |
G2M182121-PF(R8) |
MagNXT Blood DNA Extraction Kit (Pre-filled for Genes2Me Rapi-X16 for 8 isolation each) |
96 Tests |

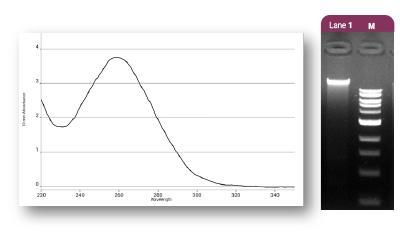

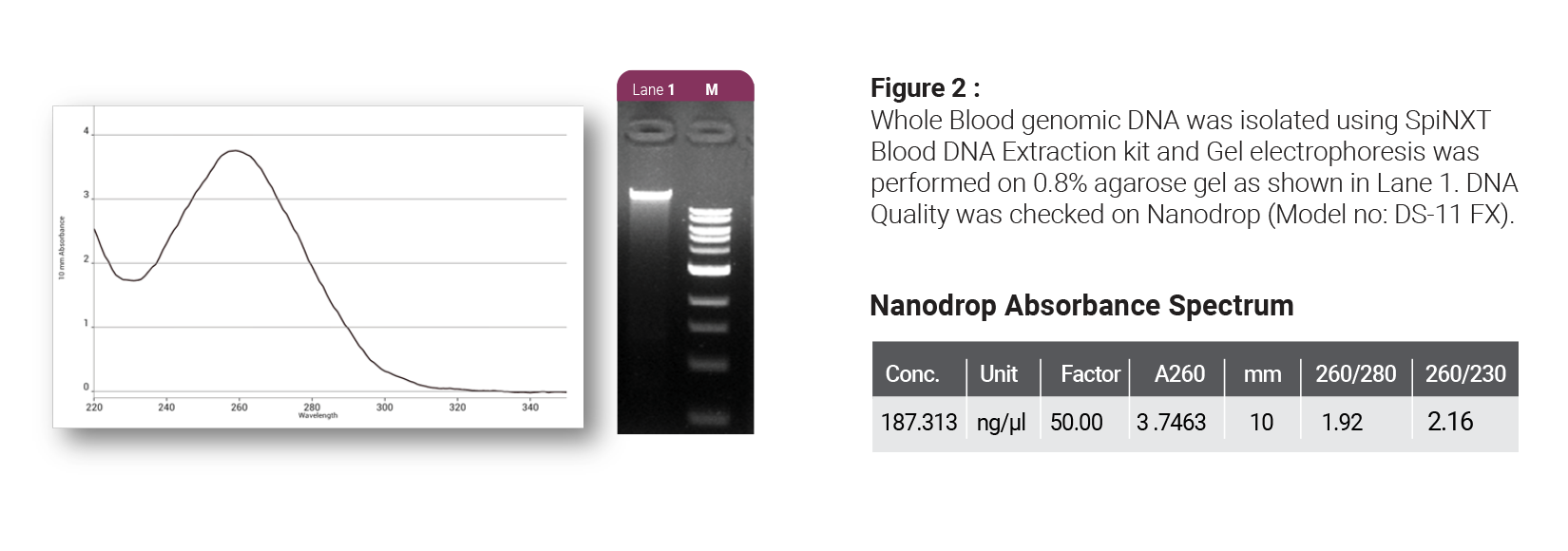

SpiNXT Blood DNA Extraction kit provides a convenient way to isolate pure genomic DNA from fresh or frozen Whole blood, buffy coat, lymphocytes as well as plasma & serum. The kit combines the features and advantages of silica binding with a micro spin format and can be used directly in the down-stream applications such as PCR, Southern Blot, virus DNA detection, restriction endonuclease digestions, enzymatic reactions and so on.
gDNA Mini Columns | 2ml Collection Tubes | Buffer LB | Buffer BW1 | Buffer BW2 | Protease Dissolve Buffer | Buffer AE | Proteinase K | Binding Buffer
Binding Capacity : 30-40µg genomic DNA
Recommended input amount : ~ 200 µl whole blood
Elution Volume : ≥30µl
Purity : A260/280 - 1.8±0.1, A260/230 - 2.0±0.1
Compatible Downstream Applications : Endpoint PCR, qPCR, Sequencing, etc
Expected Yield : Up to 10 μg (depending upon the type,quality & quantity of the starting material used)
Compatiblity : Many anticoagulants including EDTA, Heparin, and Sodium Citrate
Endpoint PCR
qPCR
Sequencing
Southern Blotting
Multiplex PCR
Enzymatic Reactions
Format |
Mini spin column |
Technology |
Silica membrane |
Sample Type |
Whole Blood (200µl), Serum, plasma, Lymphocytes/Buffy coat |
Yield |
Up to 10 µg |
Target |
Genomic DNA |
A260/280 |
1.6 - 1.9 |
Available in pack sizes |
50 Rxn, 250 Rxn |
Throughput Compatibility |
Manual |
CAT # |
DESCRIPTION |
UNITS |
G2M181820 |
SpiNXT Blood DNA Extraction kit |
50 Rxn |
G2M121720 |
SpiNXT Blood DNA Extraction kit |
250 Rxn |
