The MagNXT Tissue and body fluid DNA Extraction kit utilizes large surface area of the beads and generates highly purified genomic DNA from a wide variety of sample types.
Magnetic Bead Particles | Buffer TLB | Buffer TW1 | Buffer TW2 | Proteinase K | Protease Dissolve Buffer | Buffer AE | Buffer LBTC | Buffer CLB-3 | Binding Solution-3 | Buffer EB | Buffer CW2 | Buffer MLB | Carrier RNA
Binding Mechanism : Super paramagnetic beads
Recommended input amount : ~ 25mg tissue/200µl for body fluids
Elution Volume : ≥30µl
Purity : A260/280 - 1.8±0.1, A260/230 - 2.0±0.1
Expected Yield : >7 µg
Restriction endonuclease digestion
qPCR
Sequencing
autosomal STR analysis
viral DNA detection
Format |
Pre-filled Plates |
Technology |
Magnetic bead |
Sample Type |
Mammalian cells and tissues, Product of conception, chorionic villi sample, Cell culture pellet, Amniotic fluid, bronchial washings, Urine, sputum, saliva, pleural fluids, vaginal swabs, cervical swab, Oropharyngeal swabs, Nasopharyngeal swabs, Tissue swabs, bronchoalveolar lavage (BAL), & other body fluids |
Yield |
≥7µg |
Target |
Genomic DNA |
A260/280 |
1.6 - 1.9 |
Available in pack sizes |
96 / 192 / 480 Preps |
Throughput Compatibility |
Automation |
Catalogue Number |
Product Name |
Pack Size |
G2M212021-1XRT(PF)R8 |
Pre-filled Total Nucleic Acid for G2M Rapi-X16 for 8 Isolations each |
96 Tests |
G2M212021-1XRT(PF)R16 |
Pre-filled Total Nucleic Acid for G2M Rapi-X16 |
192 Tests |
G2M212021-1XRT(PF)R96 |
Pre-filled Total Nucleic Acid for G2M Rapi-X96 |
480 Tests |
G2M212021-1XRT(PF) MGI |
Pre-filled Total Nucleic Acid for MGI SP960 |
480 Tests |
G2M212021-1XRT(PF)KF |
Pre-filled Total Nucleic Acid for Thermo KingFisher |
480 Tests |
G2M212021-1XRT(PF)GF |
Pre-filled Total Nucleic Acid for GenFast 96 |
480 Tests |
G2M212021-1XRT-CF(PF) R8 |
Pre-filled for Rapi-X16 for 8-Isolations each for |
96 Tests |
G2M212021-1XRT-CF(PF)R16 |
Prefilled for Rapi-X16 for cell-free DNA |
192 Tests |
G2M212021-1XRT-CF(PF)R96 |
Prefilled for Rapi-X96 for cell free DNA |
480 Tests |
The SpiNXT Tissue and Body Fluid DNA Extraction kit is a comprehensive solution optimized for cell/tissue lyses and purification of intact genomic DNA (gDNA) from a broad range of biological samples such as mammalian cells and tissues, Product of conception, chorionic villi sample, Cell culture pellet, Amniotic fluid, bronchial washings, Urine, sputum, saliva, pleural fluids, vaginal swabs, bronchoalveolar lavage (BAL) & other body fluids.
gDNA Mini Columns | Collection Tubes | Buffer TLB | Buffer TW1 | Buffer TW2 | Proteinase K | Protease Dissolve Buffer | LBTC Buffer | Buffer AE

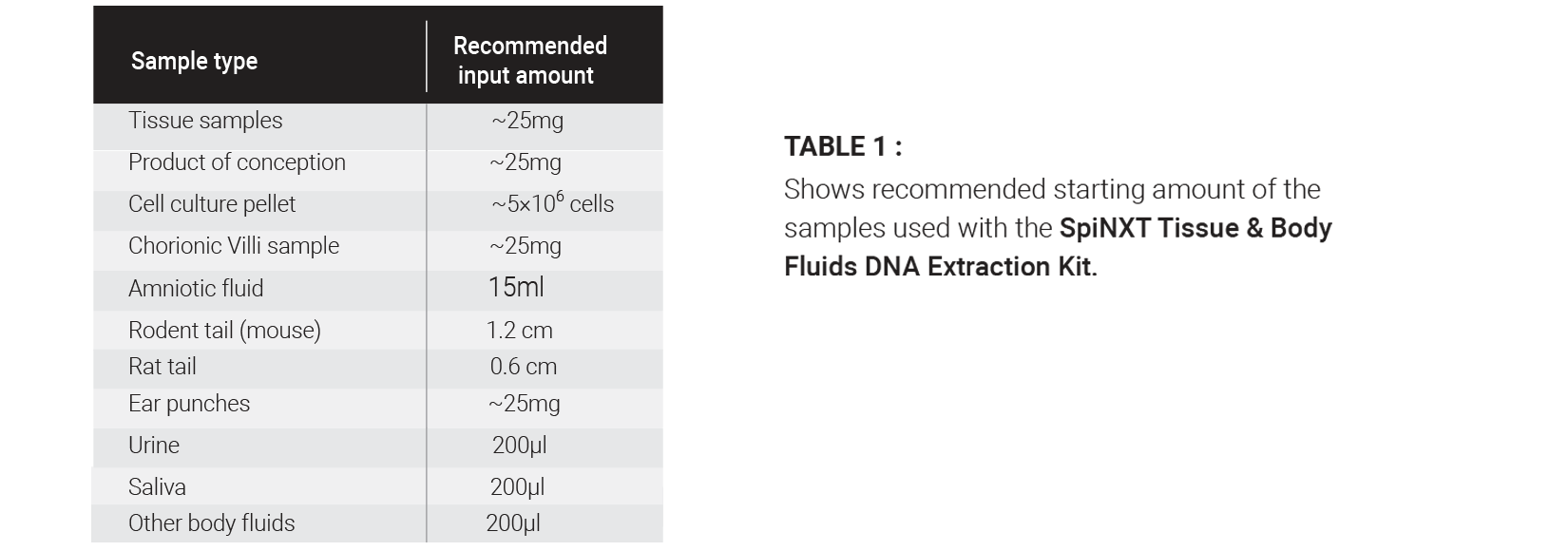

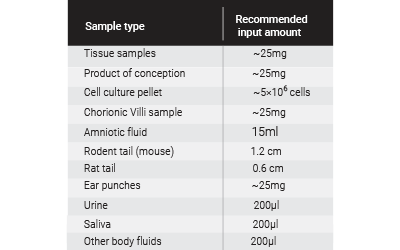

Recommended Input Amount : ~ 25mg tissue/200µl for body fluids
Binding Capacity : 30-40μg genomic DNA
Elution Volume : ≥30μl

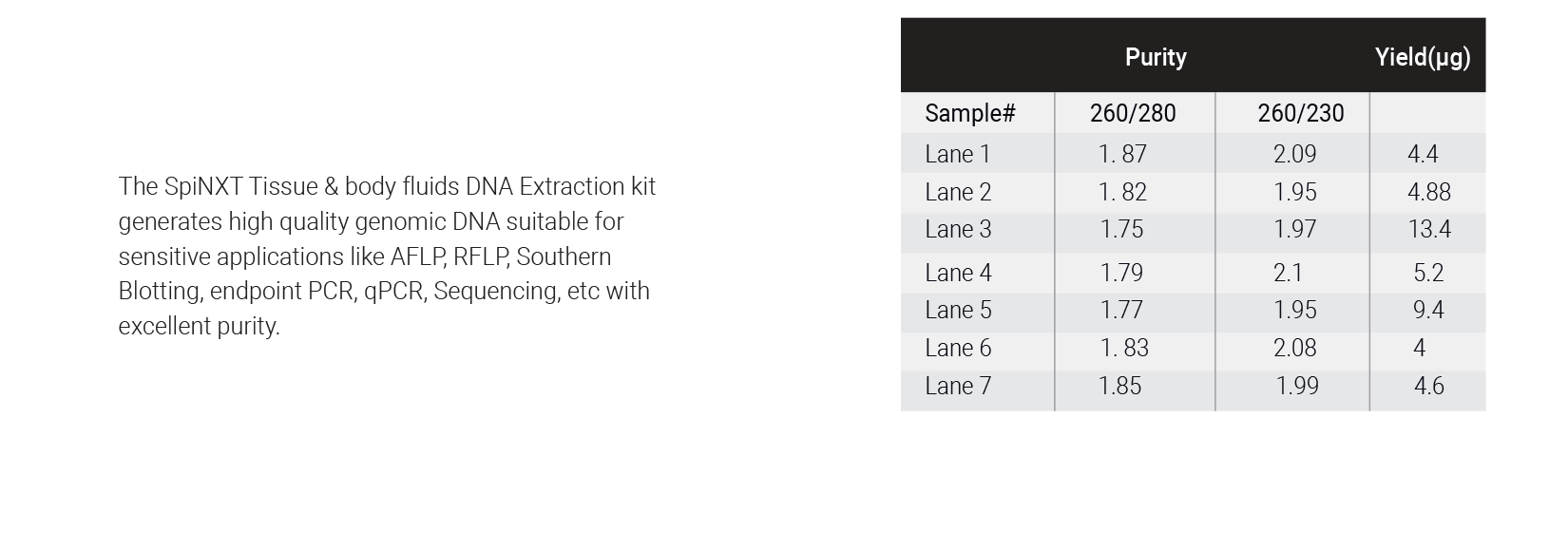

Purity :-1.8±0.1 A260/230 -2.0±0.1
Compatible Downstream Applications : AFLP, RFLP, Southern Blotting, Endpoint PCR, qPCR, Sequencing, etc
Expected Yield : ≥5μg (depending upon the type, quantity of the starting material used
AFLP
RFLP
Southern Blotting
Endpoint PCR
qPCR
Sequencing
Format |
Mini spin column |
Technology |
Silica membrane |
Sample Type |
Mammalian cells and tissues, Product of conception, chorionic villi sample, Cell culture pellet, Amniotic fluid, bronchial washings, Urine, sputum, saliva, pleural fluids, vaginal swabs, bronchoalveolar lavage (BAL), & other body fluids. |
Yield |
≥5μg |
Target |
Genomic DNA |
A260/280 |
1.6 - 1.9 |
Available in pack sizes |
50 Rxn, 250 Rxn |
Throughput Compatibility |
Manual |
CAT # |
DESCRIPTION |
UNITS |
G2M131420 |
SpiNXT Tissue & Body Fluids DNA Extraction Kit |
50 Rxn |
G2M131320 |
SpiNXT Tissue & Body Fluids DNA Extraction Kit |
250 Rxn |
