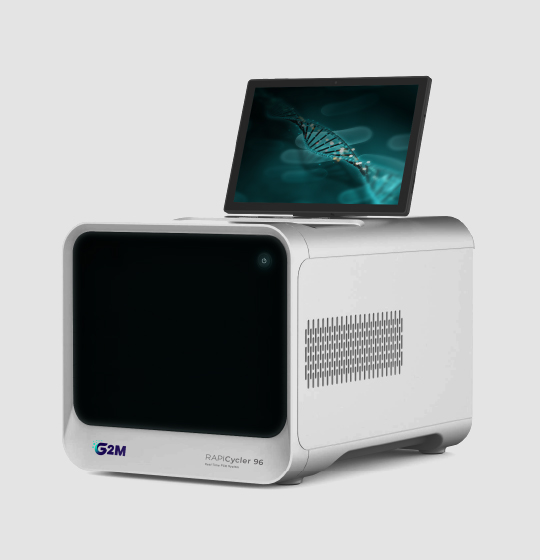

High-Performance Real-Time PCR Instrument

RapiCycler 96 is meticulously designed to meet the experimental needs of high-end laboratories with 4 or 6 fluorescence channels option to choose from. This advanced RT-PCR system can efficiently process up to 96 samples in a single run and supports wide array of applications, including qualitative and quantitative analysis, absolute and relative quantitation, melting curve analysis, standard curve and dissociation curve analysis, multiplex PCR, SNP genotyping, HRM, allele identification, and a temperature gradient function. Utilizing cutting-edge semiconductor technology, RapiCycler96 rapidly executes the PCR amplification process. Its high-sensitivity photoelectric detection system ensures real-time detection of fluorescence signals, which are then analyzed and processed by robust analysis software, providing accurate and reliable results.

Real Time PCR Testing Solutions
Synchronous Detection
All channels are detected simultaneously, with all fluorescent channels of 96 samples detected within 5 seconds.
Real Time PCR Testing Solutions
Powerful Software
Offers robust analysis capabilities for qualitative and quantitative analysis, high-resolution melting curves, genotyping, relative quantification, and temperature gradient functions.
Real Time PCR Testing Solutions
Automated Efficiency
Features an automatic hot lid compatible with automated workstations to enhance efficiency.
Real Time PCR Testing Solutions
LED Light Source:
Energy-efficient, environmentally friendly, with a long lifespan and maintenance-free operation.
Real Time PCR Testing Solutions
High Sensitivity
Delivers strong fluorescence signals with low background noise and high sensitivity.
Real Time PCR Testing Solutions
PC Operation
A single computer can control multiple instruments, allowing multiple experiments to run concurrently.

Specifications

Model No.

Rapicycler 96 (4 Channel)

Rapicycler 96 (6 Channel)

Detection Channel

4 channel

6 channel

Factory Calibrated Dyes

F1: FAM/SYBR-Green/EVA-Green
F2: HEX/VIC/JOE/TET/YELLOW/CY3/NED/TAMRA
F3: ROX/Texas Red
F4: Cy5

F1: FAM/SYBR-Green/EVA-Green
F2: HEX/VIC/JOE/TET/YELLOW
F3: ROX/Texas Red
F4: Cy5
F5: Cy5.5
F6: CY3/NED/TAMRA

Sample Capacity

96 well, 12*8 strip, 96*0.2ml single tube

Consumable

0.2ml tube, 0.2ml 8-tube strips, 0.2ml 96 well plate

Reaction Volume

5-100μl

Temperature Range

0-100℃ (Resolution:0.1℃)

MAX. Ramp Rate

upto7.0℃/s

Temperature Control
Accuracy

±0.1℃

Uniformity

±0.25℃

Accuracy

±0.25℃

Hot Lid Temperature

30-110℃ (Adjustable, default 105℃)

Hotlid opening mode

Automatic cover opening

Temperature Control

Block/Tube

Excitation Wavelength

300nm- 810nm

Emission Wavelength

500nm- 810nm

Excitation

Long life LED

Detection

High sensitivity photoelectric detector

Dynamic Range

1-1010 Copies

Sensitivity

1 Copy

Feature function

Qualitative/absolute quantification, relative quantitative, genotyping, HRM, melting curve, standard curve, allele identification, temperature gradient function, etc.

Control mode

PC control, one pc control multiple instruments at the same time

Date Export Formats

excel, csv, txt

Printing

Report can be printed (optional USB thermal printer)

Communication parts

USB2.0, RS232

Dimension

495x350x330mm (L x W x H)

Net Weight

28kg

Power

1400W

Areas of Application


This versatile system is ideal for a wide range of applications, including:


  • Clinical Diagnostics : Facilitating the detection and quantification of pathogens and genetic markers for disease diagnosis.

  • Epidemiological Monitoring : Enabling the surveillance and tracking of infectious diseases.

  • Food Safety : Assuring the detection of contaminants and pathogens in food products.

  • Forensic Science : Supporting genetic profiling and identification in forensic investigations.

  • Scientific Research : Advancing molecular biology research through accurate and efficient PCR analysis.

  • Scientific Research : Advancing molecular biology research through accurate and efficient PCR analysis.
