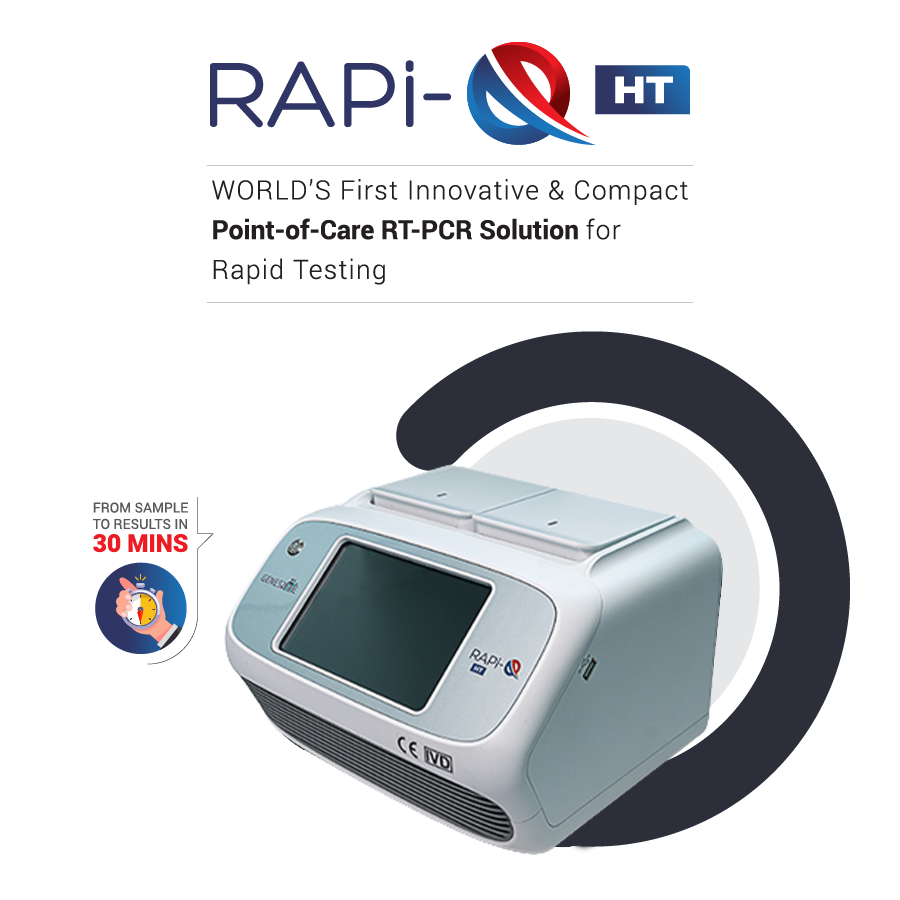

Rapi-Q HT Rapid POC RT-PCR Testing Solution

The Rapi-Q HT POC Rapid RT PCR System features a 4-channel, dual-block design and utilizes semiconductor technology to accelerate the PCR amplification process. It includes a high-sensitivity photoelectric detection system that detects fluorescence signals in real-time, which are then processed by advanced analysis software.

Rapi-Q Rapid POC RT-PCR Testing Solution

The Rapi-Q Rapid POC RT-PCR Testing Solution is a compact, lightweight, and user-friendly CE-IVD approved tool designed with an eight-well block and four fluorescent channels. It delivers results in approximately 30 minutes or more for up to 8 samples. This solution eliminates the need for technically skilled personnel by providing software-driven automated analysis, interpretation, and reporting. It supports qualitative and quantitative analysis, melting curve analysis, and genotyping. .

RT-PCR Testing Instrument
Real Time PCR Testing Solutions
Fast Turnaround Time
Provides results from direct samples in 30-45 minutes.
Real Time PCR Testing Solutions
Pipette-Free Operation
Eliminates the need for a technically skilled operator
Real Time PCR Testing Solutions
High Sensitivity, Specificity, and Accuracy
Achieves 99% sensitivity with precise results.
Real Time PCR Testing Solutions
Multiplex Detection
Analyzes up to four targets simultaneously, allowing for the detection of multiple genes or infections.
Real Time PCR Testing Solutions

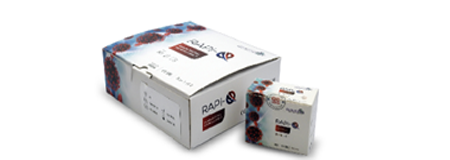

Lyophilized Kits
Allows analysis of up to 4 genes simultaneously.
Real Time PCR Testing Solutions
Lyophilized Format
Stable at room temperature for up to 12 months due to the lyophilized format.
Real Time PCR Testing Solutions
Automated Analysis and Reporting
Features automated interpretation and reporting for streamlined workflow
Real Time PCR Testing Solutions
Extensive Validation
Validated across a wide range of clinical samples for reliability.
Real Time PCR Testing Solutions
Parallel Detection
Detects targets alongside endogenous internal control for enhanced accuracy.
Real Time PCR Testing Solutions
User-Friendly Interface
Equipped with a 7-inch high-definition TFT color touch screen and embedded Windows 10 operating system.
Real Time PCR Testing Solutions
Advanced Software Capabilities
Supports quantitative analysis, melting curve analysis, genotyping, and more.
Real Time PCR Testing Solutions
Innovative Hot Lid Design
One-touch operation with a unique hot lid lock design.
Real Time PCR Testing Solutions
Space-Saving Airvent Design
Forward and backward air vent design allows side-by-side placement, optimizing laboratory space.
Real Time PCR Testing Solutions
Preset Program Settings
Pre-configured for multiple RT-PCR assays and fluorescent detection, enhancing ease of use.

Specifications

Model No.

Rapi-Q HT

Sample Capacity

32×0.2ml(2×16 well, double block)

Consumable

Clear 0.2 ml PCR tube /8-tube strips

Reaction Volume

10-100μl

Temperature control technology

Peltier

Temperature Range

4-100°C (Resolution:0.1°C)

MAX. Ramp Rate

8°C/s

Temperature fluctuation

±0.1°C

Uniformity

±0.25°C

Accuracy

±0.25°C

Hot Lid Temperature

30-110°C (Adjustable, default 105°C)

Temperature Control

Block/Tube

Excitation wavelength

F1:470nm F2:523nm F3:571nm F4:628nm

Emission wavelength

F1:525nm F2:571nm F3:612nm F4:692nm

Factory Calibrated Dyes

F1: FAM/SYBR Green I F2: HEX/VIC/JOE/TET F3: ROX F4: CY5

Excitation

Long life LED

Detection

High sensitivity photoelectric detector

Dynamic Range

1-1010 Copies.

Sensitivity

1 copy

Feature function

Absolute/Relative Quantification, Melting curve, Genotyping

Date Export Formats

excel,csv,txt

Printing

Report can be printed (optional USB thermal printer)

Display

7 inch color TFT touch screen, 1280×800 pels

Communication Parts

USB2.0

Dimension

300x267x198mm(L x W x H)

Net Weight

11KG

Power

DC30V 600W
