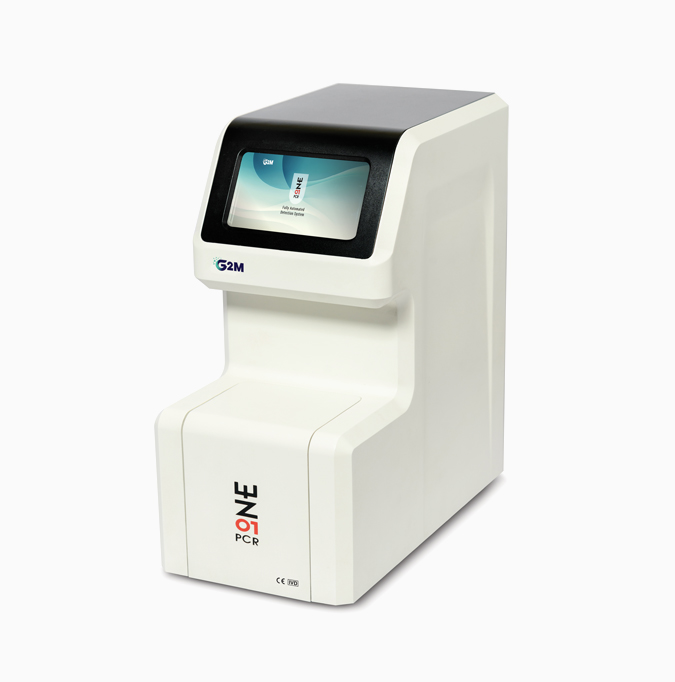

OnePCR – Fully Automated Detection System

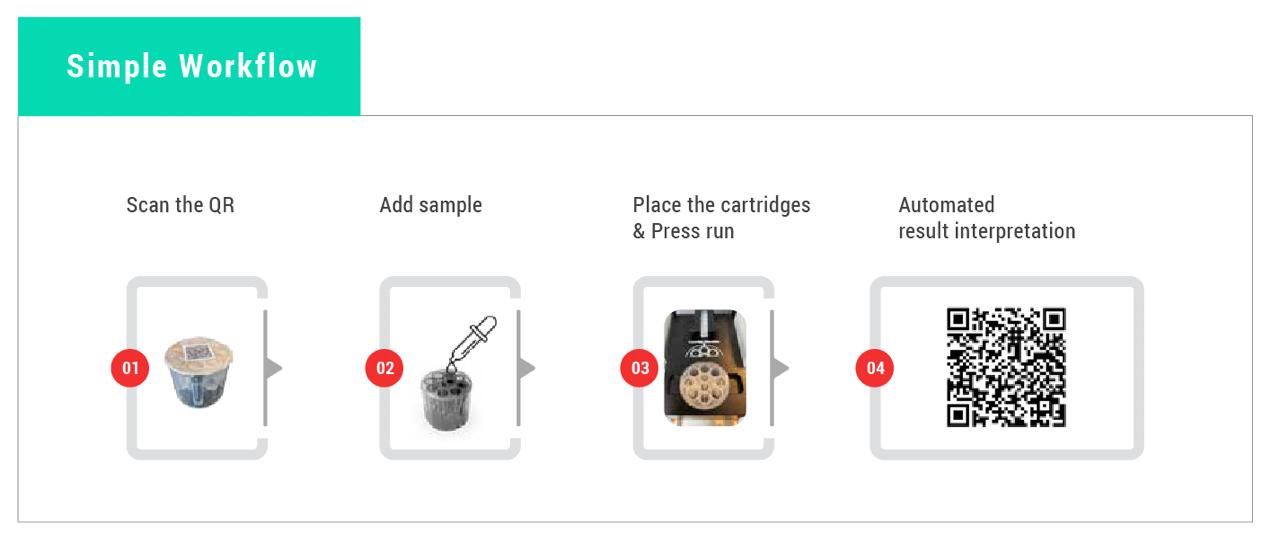

OnePCR is an all-in-one, fully automated detection system that offers a streamlined sample-to-result workflow, eliminating the need for sample transfer between instruments, which reduces theturnaround time and minimizes the risk of human errors. This highly sensitive, comprehensive solution provides reliable detection using automated Magnetic bead based nucleic acid extraction, followed by RT-PCR detection in a single run. It utilizes an innovative single-use disposable sealed extraction and PCR cartridge to avoid contact with the instrument, environment, or any carryover contamination.

RT-PCR Testing Instrument
Real Time PCR Testing Solutions
Fast Turn Around Time
From sample to results in less than 90 minutes
Real Time PCR Testing Solutions
Multi-Target Detection
Capable of detecting up to 20 targets in a single sample
Real Time PCR Testing Solutions
Five-Channel Fluorescence Chemistry
Employs a 5-channel fluorescence system for accurate detection
Real Time PCR Testing Solutions
Walkaway automation
Operates as a standalone system with no need for manual intervention
Real Time PCR Testing Solutions
Pre-Filled Cartridge
Equipped with pre-filled cartridges for both extraction and amplification processes without the manual liquid transfer saves time and chances of error
Real Time PCR Testing Solutions
Magnetic Bead-Based Extraction
Utilizes magnetic bead technology for efficient extraction
Real Time PCR Testing Solutions
Contamination Control
Built-in HEPA filters & UV light sterilization for efficient results
Real Time PCR Testing Solutions
User-Friendly Software
Intuitive, built-in software ensures ease of operation and quick data reporting
Real Time PCR Testing Solutions
Simple and Compact
A plug-and-play instrument designed for ease of use

Specifications

Model

OnePCR

Sample throughput

>1

Sample throughput

Up to 20 targets

Extraction Principle

Magnetic Bead-Based method

Sample Volume

><500uL (For Extraction)

Max heating rate

7℃/S

Max cooling rate

7℃/S

Temperature range

9~99°C

Temperature accuracy

±0.20°C

Temperature uniformity

±0.20°C

Fluorescence Channels

5

Supported Dyes

Channel 1: FAM /SYBR Green
Channel 2 :VIC/HEX/JOE/TET
Channel 3 :ROX/Texas Red
Channel 4 :Cy5/LIZ
Channel 5 :Cy5.5

Fluorescence channel crosstalk

After correction, crosstalk rate of the original fluorescence value between the channels is less than 1.00 %

Scanning method & time

Linear scanning, time 2s

Excitation Wavelength

455-650nm

Emission Wavelength

500-720nm

Data Analysis

The CT threshold is qualitative, relatively quantitative, and the data results are obtained as positive/ negative along with the Ct values and detected genes.

Data Export

USB disk and Bluetooth

Bar Code

QR Code - Protocol Selection
128 Bit Barcode - Sample traceability

Control Method

In built touch screen

Supported languagesy

English version

Certification

CE-IVD, EMC/IEC compliant

Pollution control

Paraffin sealing, Negative pressure system, HEPA filtration, UV sterilize

PWorking Environment

15-35 °C, ≤85%

Voltage/frequency

100V-240V, 50/60Hz, 160W

Dimension

155mm*363mm*346mm, 6KG

Available Kits

Cardiovascular Function
Sepsis-Q RT-PCR Kit
Cardiovascular Function
AMR RT-PCR Kit
Cardiovascular Function
PML RARA RT-PCR Kit
Cardiovascular Function
Blood Borne Disease
Cardiovascular Function
Genetic Disorders
Cardiovascular Function
Nipah Virus RT-PCR Kit
Cardiovascular Function
BCR ABL RT-PCR Kit
Cardiovascular Function
MTB RT-PCR Kit
Cardiovascular Function
HPV
Cardiovascular Function
STI
Cardiovascular Function
MERS
Cardiovascular Function
Wound Panel
Cardiovascular Function
Influenza A/B
Cardiovascular Function
Vector borne Transmission Detection
