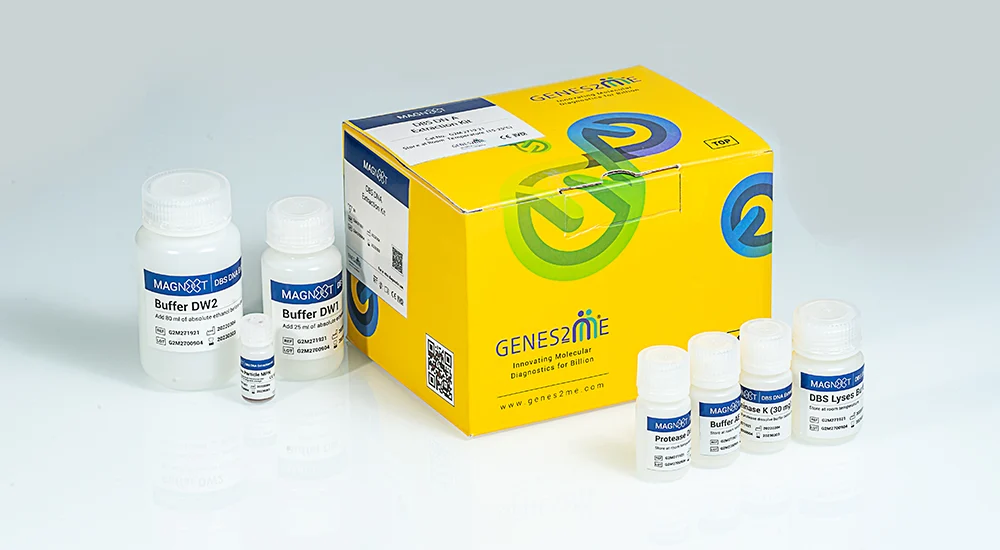

The DBS DNA Extraction kit provides a fast and simple silica column-based/ magnetic bead particles solution for challenging samples like dried blood spots. It allows for the isolation of DNA from the blood of various mammalian species, including humans. The blood should be spotted and dried on suitable filter paper or specimen collection cards. The purified DNA is of high quality and is completely compatible with downstream applications including PCR, qPCR and more.
Restriction endonuclease digestion | qPCR | Sequencing | Autosomal STR analysis | Viral DNA detection
Recommended Input Amount : ~10-50mg tissue
Binding Capacity : 30-40μg genomic DNA
Elution Volume : ≥40μl (100μl is recommended)
Purity : A260/280 -1.8±0.1
Compatible Downstream Applications : PCR, qPCR, Sequencing, etc
Expected Yield : ≥5μg (depending upon the type, quality & quantity of the starting material used
PCR
qPCR
Sequencing
Format |
Mini spin column |
Technology |
Silica membrane |
Sample Type |
Whole Blood (200µl), Serum, plasma, Lymphocytes/Buffy coat |
Yield |
Up to 10 µg |
Target |
Genomic DNA |
A260/280 |
1.6 - 1.9 |
Available in pack sizes |
50 Rxn, 250 Rxn |
Throughput Compatibility |
Manual |
CAT # |
DESCRIPTION |
UNITS |
G2M232421 |
SpiNXT DBS DNA Extraction kit (Dried Blood Spot) |
50 Rxn |
G2M232321 |
SpiNXT DBS DNA Extraction kit (Dried Blood Spot) |
250 Rxn |
